Z7306 HIMA shunt adapter

Description

Detailed explanation of HIMA Z7306 splitter adapter

Product Overview

HIMA Z7306 is a shunt adapter designed specifically for HIMA safety instrumented systems.It is mainly used to convert analog signals into standard 4-20mA current signals for connection to HIMA safety controllers or remote I/O modules.

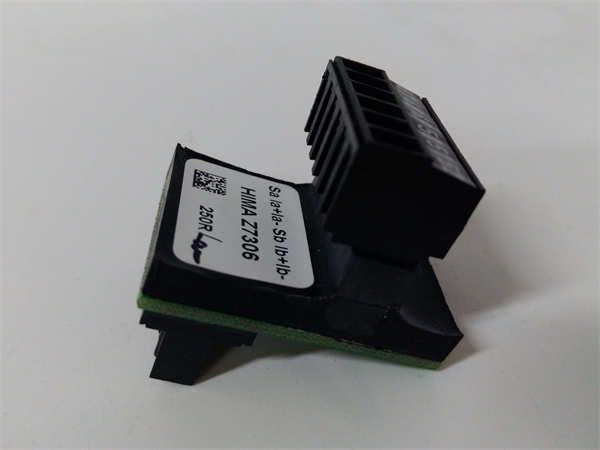

Z7306 HIMA

Product Features

HART protocol support:Built in 250ΩHART resistor,supports HART protocol,can achieve configuration and diagnosis of smart devices.

High precision:With high measurement accuracy,it ensures accurate signal transmission.

Modular design:easy to install and maintain.

High reliability:Adopting industrial grade design,suitable for harsh industrial environments.

Product parameters and specifications

model:Z7306

Brand:HIMA

Type:Split adapter

HART resistor:250Ω

Working temperature:-25℃~+70℃

Humidity:5%~95%RH

Series Introduction

Z7306 belongs to the HIMA HIMatrix series of products.HIMatrix is an important component of the HIMA safety instrumented system,providing various types of input/output modules for implementing safety functions.

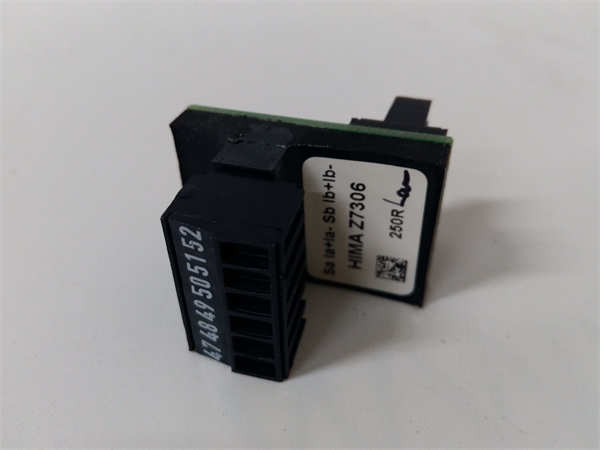

Z7306 HIMA

Function and Application

Signal conversion:Convert analog signals into standard 4-20mA current signals.

HART protocol communication:Supports HART protocol to achieve communication with smart devices.

Safety system integration:used for HIMA safety instrumented system to achieve safety functions.

application area

Process industries:petrochemicals,electricity,metallurgy,etc.

Discrete industries:automobile manufacturing,food and beverage,etc.

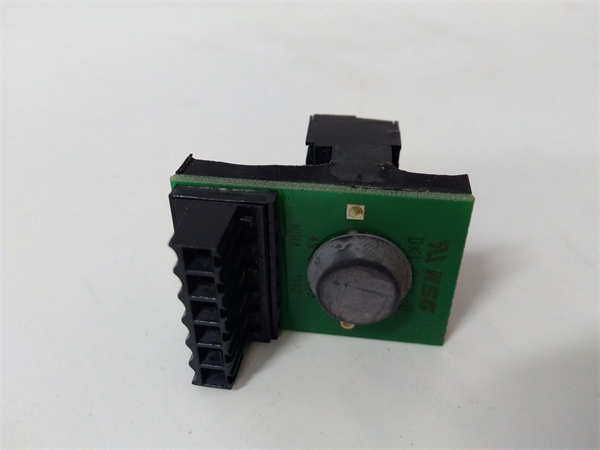

Z7306 HIMA

summary

The HIMA Z7306 shunt adapter is a reliable and flexible signal conversion module that plays an important role in the HIMA safety instrumented system.It can convert various analog signals into standard 4-20mA current signals and supports the HART protocol,providing reliable assurance for the implementation of safety systems.
