V7768-322001 350-9301007768-322001 A2 GE processor VME single-board computer

Description

GE V7768-322001 350-9301007768-322001 A2 Processor VME single-board computer Description

Product overview

The GE V7768-322001 350-9301007768-322001 A2 is a single-board computer based on the VME bus,which integrates the processor,memory,storage interface,communication interface,etc.,and can run the operating system and application programs independently.This single board computer is mainly used in industrial control,data acquisition,communication processing and other fields.

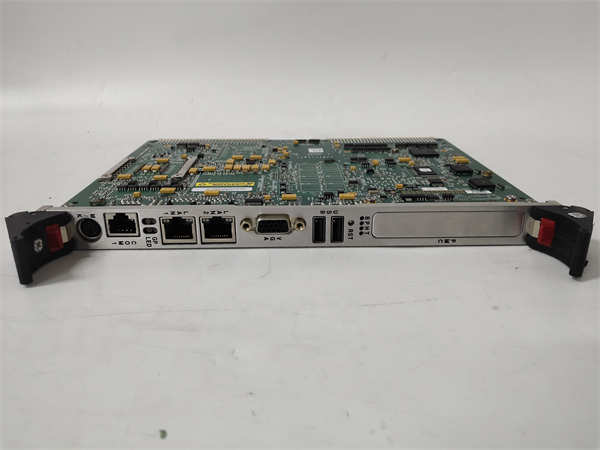

V7768-322001 350-9301007768-322001 A2 GE

Product parameter

Processor:Intel Core 2 Duo,up to 2.16GHz

Cache:Up to 4Mbyte L2 cache

Memory:Up to 2Gbyte DDR2 SDRAM with a single SODIMM,667MHz system and memory bus

Storage:Up to 8Gbyte CompactFlash can be started

Expansion Interface:A PCI-X PMC expansion site for board-to-board connection of PMC237CM1/VPMC expansion boards

Network interface:2 Gigabit Ethernet on the front panel

Serial ports:2

USB ports:Four USB 2.0 ports

Other ports:2 SATA,PS/2 keyboard/mouse on the front panel

Supported operating systems:Windows®XP,VxWorks®,and Linux®

Product specification

Model:V7768-322001 350-9301007768-322001 A2

Manufacturer:GE

Size:VME standard size(usually 6U)

series

The specific product family to which the V7768-322001 A2 belongs needs to be determined according to the product manual or supplier information.GE has a wide range of products in embedded computing.

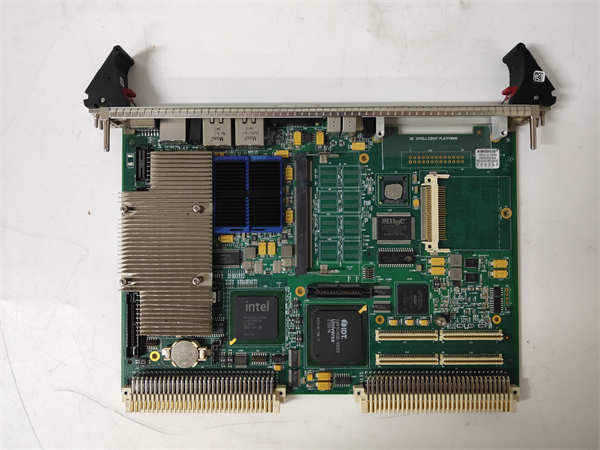

V7768-322001 350-9301007768-322001 A2 GE

trait

Common features of VME single-board computers include:

Industrial grade design:Ensure stable operation in harsh environments

High reliability:It has high reliability and can work stably for a long time

Good real-time:can meet the needs of real-time control applications

Strong scalability:Various functional modules can be extended through the VME bus

Software support:Multiple operating systems and development tools are usually supported

effect

The function of VME single board computer is as the core control unit of industrial control system,data acquisition system,communication processing system,etc.,running various applications to achieve specific functions.

use

VME single board computers are widely used in various industrial automation control systems,such as:

PLC control system:As the core control unit of PLC,to achieve logic control,motion control and other functions

DCS control system:as the core control unit of DCS,to achieve process control,data acquisition and other functions

SCADA system:As the core control unit of SCADA system,it realizes remote monitoring,data acquisition and other functions

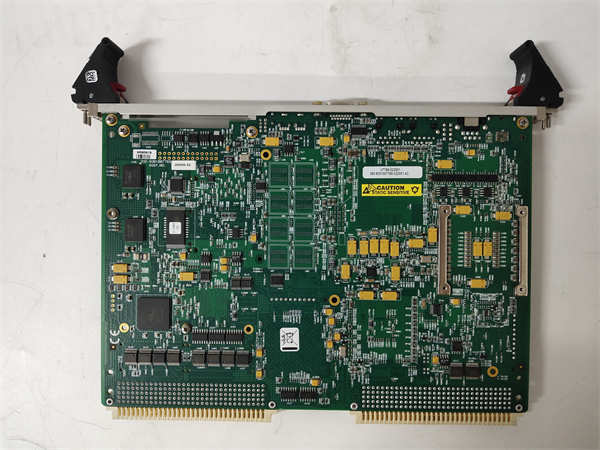

V7768-322001 350-9301007768-322001 A2 GE

Application field

VME single board computers are used in a wide range of applications,involving almost all industries requiring industrial control,such as:

Manufacturing industry

electricity

Petrochemical industry

traffic

aerospace

National defense
