TP830 ABB processor module base plate

Description

Detailed Explanation of ABB TP830 Processor Module Base Plate

Product Description

ABB TP830 is a processor module backplane commonly used in ABB control systems,such as ABB Advant OCS or 800xA systems.It provides electrical connections and mechanical support for the processor module and is an important component of the control system.The base plate is usually installed on the rack and used together with other modules(such as I/O modules,communication modules,etc.)to form a complete control system.

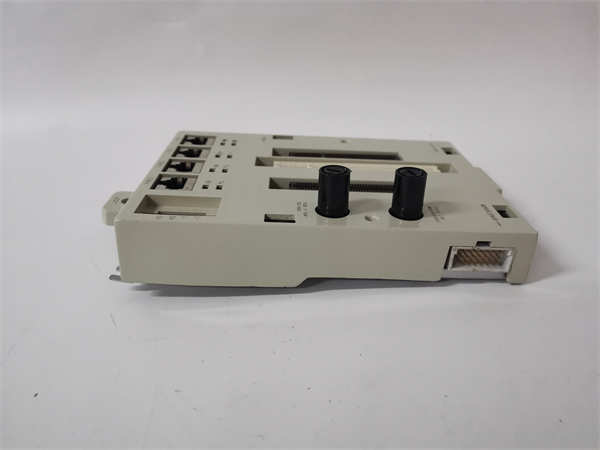

TP830 ABB

Product parameters

model:TP830

Type:Processor Module Backboard

Product net depth:48mm

Product net height:189 millimeters

Net weight of product:0.234 kilograms

Product net width:119 millimeters

Installation method:Rack mounted installation

series

TP830 is typically a part of ABB control systems such as Advant OCS or 800xA.These systems typically include various modules,such as processor modules,I/O modules,communication modules,power modules,etc.

features

Electrical connection:Provide reliable electrical connections for the processor module to ensure the stability of signal transmission.

Mechanical support:Provide mechanical support for the processor module to prevent it from loosening or being damaged.

Modular design:Modular design is usually adopted for easy expansion and maintenance.

Easy to install:It usually adopts a rack mounted installation method,which is convenient for installation and disassembly.

Durable and sturdy:Adopting industrial grade design,it has good anti-interference ability and durability.

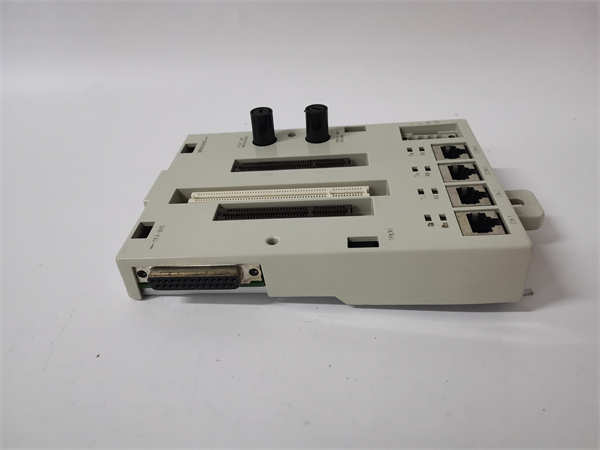

TP830 ABB

effect

The main function of TP830 base plate is:

Connect processor module:Connect the processor module to other parts of the control system.

Provide power:Provide the necessary power to the processor module.

Implement inter module communication:Support communication between processor modules and other modules.

purpose

This bottom plate is usually used in the following situations:

Industrial automation:used to build various industrial automation control systems.

Process control:used to build various process control systems.

Power system:used to build automation control systems for power systems.

application area

The TP830 base plate is suitable for various fields that require industrial control,including:

manufacturing

process control

power

traffic

energy

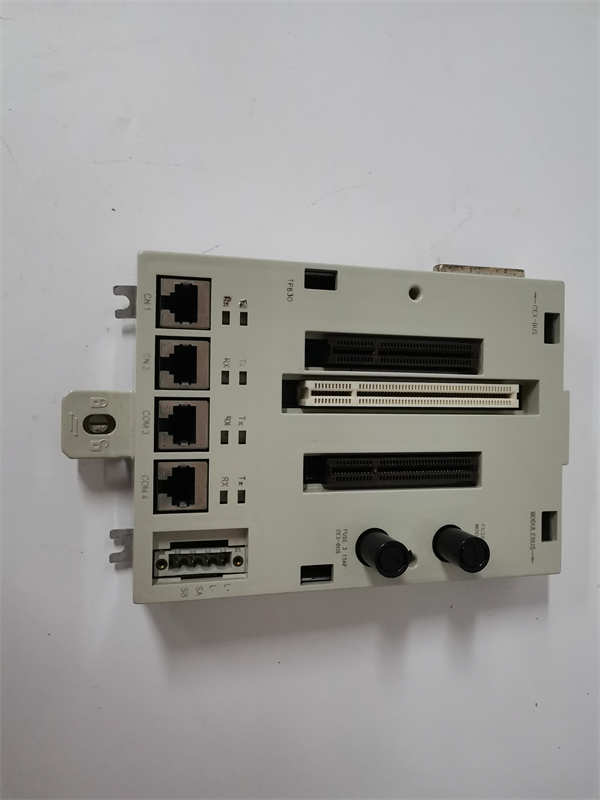

TP830 ABB

summary

The ABB TP830 processor module backplane is an important component of ABB control systems,providing electrical connections and mechanical support for the processor module,and serving as the foundation for building reliable control systems.
