T9481 ICS TRIPLEX Analog Output Module

Description

T9481 ICS TRIPLEX Analog Output Module Detailed Explanation

Product Description

T9481 is an analog output module produced by ICS Triplex(now acquired by Rockwell Automation).It is an important component of the ICS Triplex AADdistance control system,used to convert the digital signals generated by the control system into analog signals and drive the actions of field devices.This module has the characteristics of high precision,high reliability,and safety,and is widely used in various industrial automation fields,especially in safety critical applications.

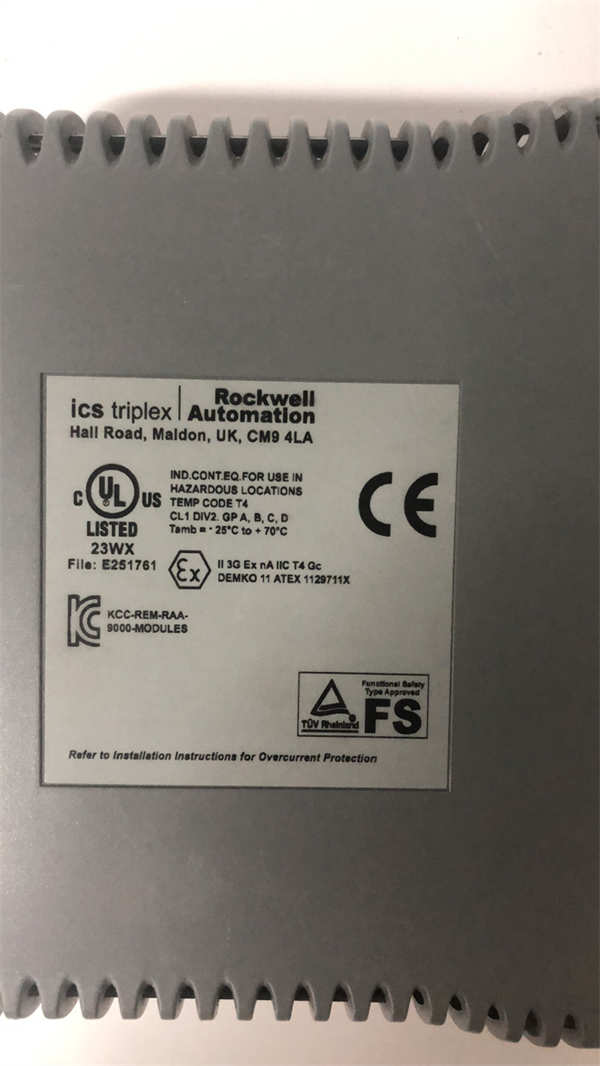

T9481 ICS TRIPLEX

Product parameters

model:T9481

Series:ICS Triplex AADvance

Type:Analog Output Module

Output voltage range:±10V,0-10V

Output current range:4-20mA

series

T9481 belongs to the ICS Triplex AADvance series of products.This series of products is mainly used to build industrial control systems with high reliability and safety.

features

High precision:By using a high-precision analog-to-digital converter,accurate analog signal output can be achieved.

Multi channel:Provides multiple analog output channels to control multiple devices simultaneously.

Configurable:The output signal type and range can be configured according to actual needs.

Isolation:Provide electrical isolation,effectively protect systems and equipment,and improve system safety.

Diagnostic function:It has diagnostic function and can detect the status of output signals and the operation status of modules.

Software support:Provide corresponding software tools and drivers to facilitate user configuration and control.

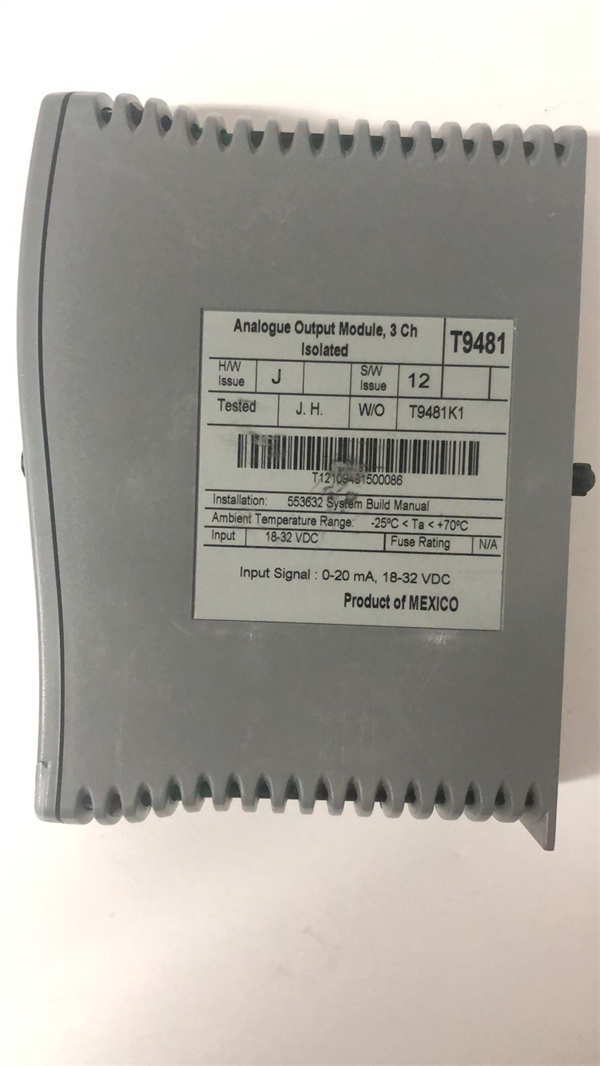

T9481 ICS TRIPLEX

effect

The T9481 analog output module is an important component of the AADvance control system,responsible for converting the digital signals generated by the control system into analog signals and driving the actions of on-site equipment.These analog signals can control various devices such as valves,motors,regulators,etc.

purpose

The T9481 analog output module is widely used in various industrial automation fields,especially in safety critical applications,such as:

Process control:used to control various equipment in process control,such as valves,pumps,etc.

Security system:used to control safety related equipment,such as emergency stop valves.

Equipment control:used to control the operation of equipment,such as motor speed regulation,temperature control,etc.

application area

The T9481 analog output module is suitable for various industrial control applications that require high reliability and safety,such as:

petrochemical industry

power

rail transit

Aerospace

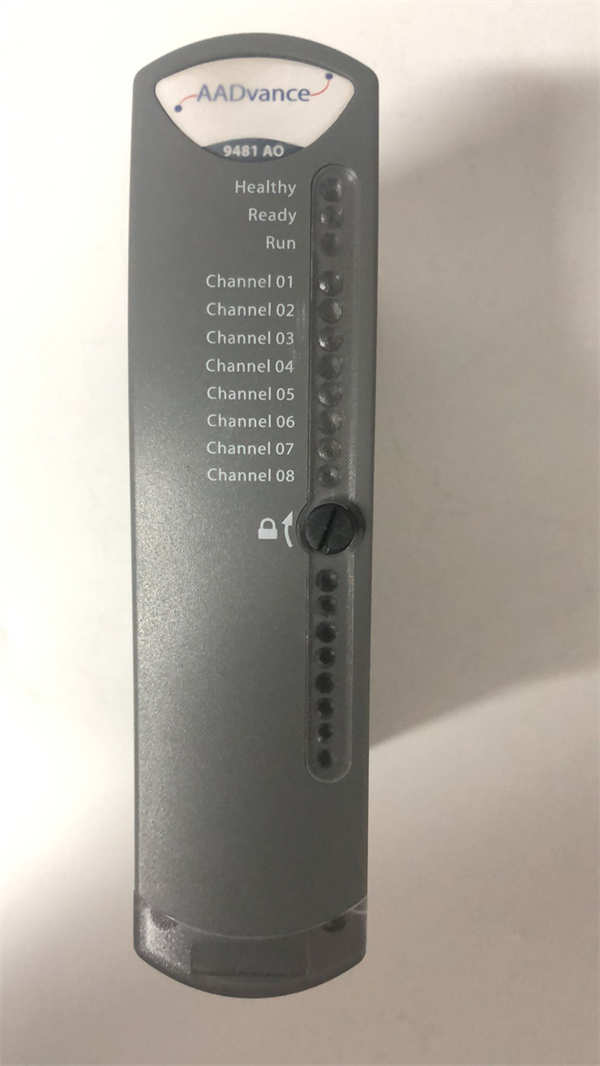

T9481 ICS TRIPLEX

summary

The T9481 ICS TRIPLEX analog output module is a high-precision,high reliability,and safety product that can be widely used in various industrial automation fields,especially in safety critical applications.Its isolation function,diagnostic function,and software support make it an ideal choice in the field of industrial control.
