ICS Triplex T8461 Trusted TMR 24V DC Digital Output Module
Product Overview
ICS Triplex T8461 is a highly reliable digital output module designed specifically for ICS Triplex TMR systems.It can control the digital output of 40 field devices and ensure the reliability of the output through a Triple Modular Redundancy(TMR)architecture.

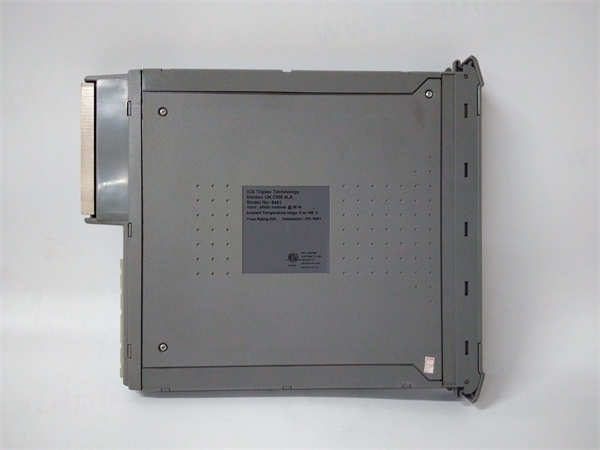

T8461 ICS TRIPLEX
main features
40 digital outputs:Each module can control 40 digital outputs.
Triple module redundancy:Adopting TMR architecture to improve system reliability.
Flexible configuration:It can be flexibly configured according to different application requirements,including output polarity,fault safety status,etc.
Diagnostic function:It has comprehensive automatic diagnosis and self checking functions.
Product parameters
model:T8461
Output voltage:24V DC
Number of output channels:40
Working temperature:0℃~55℃
Relative humidity:5%~95%RH
Product specifications
Size:16cm x 16cm x 12cm
Weight:0.8kg
Installation method:Insert into T8100 chassis

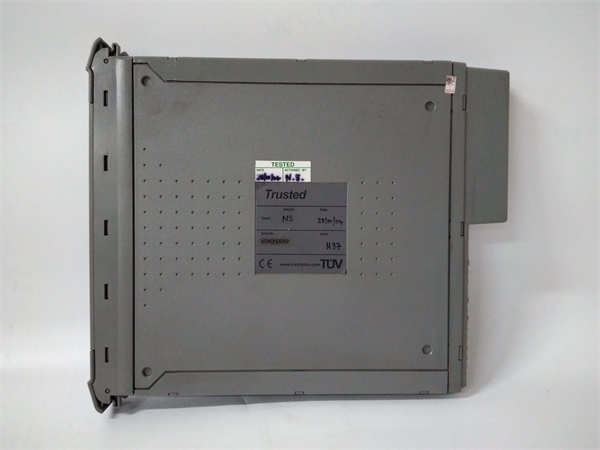

T8461 ICS TRIPLEX
Product series
T8461 belongs to the Trusted TMR system series of ICS Triplex.
Product function
Control output:Control the on/off status of on-site equipment.
Signal output:Output digital signals to control external devices.
Fault protection:Protect the system through fault safety functions.
Product Usage
Industrial automation:used in industrial control systems that require high reliability.
Process control:Control actuators such as valves,motors,etc.
Security system:used to build a security system and implement safety interlocking functions.
application area
Petrochemical industry:process control,safety interlock
Electricity:Control of power plants and substations
Metallurgy:blast furnace control,steel rolling process control

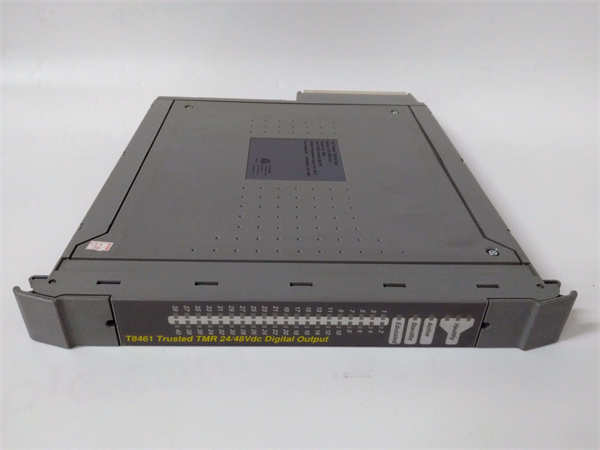

T8461 ICS TRIPLEX
working principle
The T8403 module drives the output channel based on the received control instructions to control external devices.The TMR architecture ensures the reliability of the output,and even if a single module fails,it will not affect the normal operation of the system.
summary
ICS Triplex T8461 is a highly reliable digital output module suitable for industrial control systems that require high output reliability.It can control a large number of digital outputs and ensure the accuracy of the outputs through TMR architecture.
