SCXI-1325 NI High Voltage Terminal Block

Description

NI SCXI-1325 Product Overview

Product Overview

NI SCXI-1325 is a high-voltage terminal block of the SCXI(Signal Conditioning Extended Input/Output)series produced by National Instruments(NI)in the United States.It is mainly used to connect high voltage signals and transmit them to other modules in the SCXI system for measurement and analysis.

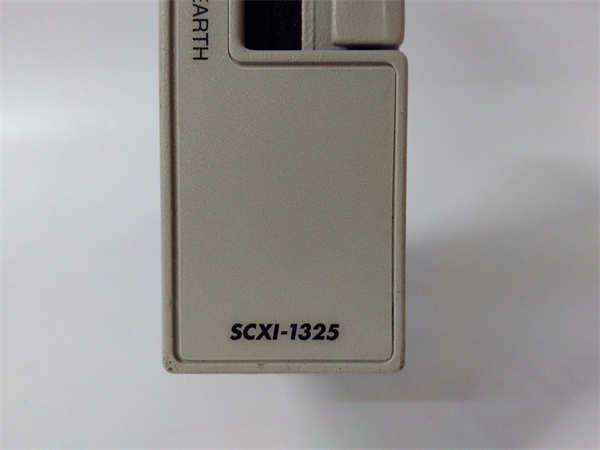

SCXI-1325 NI

Product Features

High voltage tolerance:SCXI-1325 can safely connect high voltage signals and has good insulation performance.

Multi channel:Provides multiple wiring terminals that can simultaneously connect multiple high-voltage signals.

Modular design:Compliant with SCXI standards,it can be flexibly combined with other SCXI modules to build various testing systems.

Durable and sturdy:With a compact design and sturdy structure,it is suitable for industrial environments.

Product parameters and specifications

model:SCXI-1325

Type:High voltage terminal block

Connection method:screw terminal

Wire specification:Supports 26-14 AWG

Humidity range:5%to 90%.

series

SCXI-1325 belongs to NI’s SCXI series products,which are a series of modular signal conditioning and interface modules provided by NI for its data acquisition system,widely used in the field of testing and measurement.

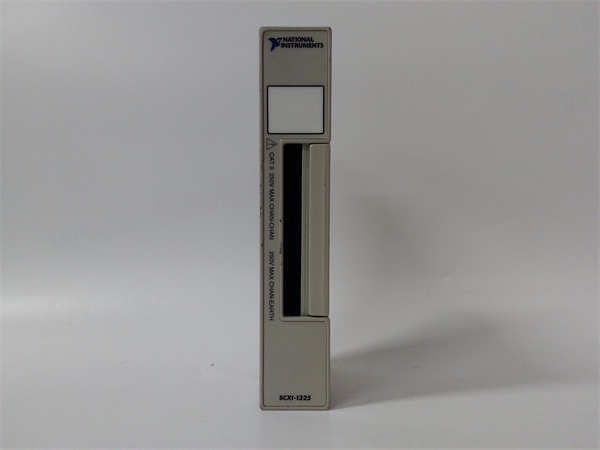

SCXI-1325 NI

effect

High voltage signal connection:safely connect the high voltage signal to the measurement system.

Signal isolation:Provide electrical isolation to protect the measurement system from high voltage damage.

Signal transmission:Transmit high-voltage signals to other modules in the SCXI system for processing.

purpose

Power electronics testing:used to test the performance of high-voltage power electronic equipment.

Motor drive testing:used to test the performance of motor drives.

Power test:used to test the performance of the power supply.

High voltage equipment maintenance:used for maintenance and fault diagnosis of high-voltage equipment.

application area

Power industry:power plants,substations

Automotive Industry:Automotive Electronic Testing

Aerospace:Testing of Aerospace Equipment

Research Institute:Research Laboratory

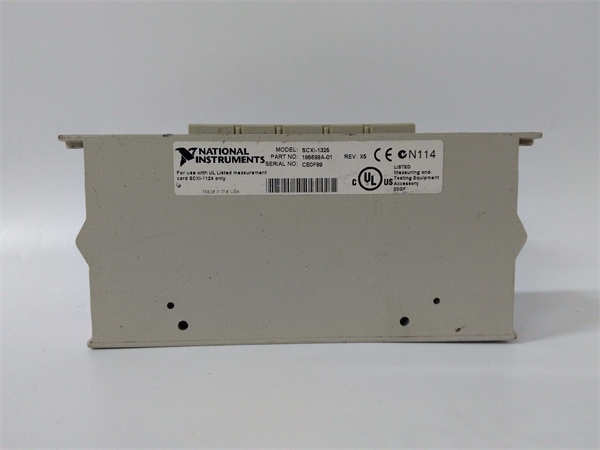

SCXI-1325 NI

summary

NI SCXI-1325 is a terminal block specifically designed for processing high voltage signals and is an important component of the NI SCXI system.It has the characteristics of high voltage tolerance,multi-channel,modular design,etc.,and is widely used in various occasions where high voltage signals need to be measured and analyzed.
