PCD235A101 ABB excitation control module

Description

Detailed information of ABB PCD235A101 excitation control module:

Product Description

ABB PCD235A101 is an excitation control module produced by ABB company.It is mainly used to control the excitation system of synchronous motors,regulate the excitation current of the motor,and achieve precise control of parameters such as motor voltage and power factor.This module is usually used in conjunction with ABB UNITOL series excitation systems and is widely used in industries such as power,metallurgy,and shipbuilding.

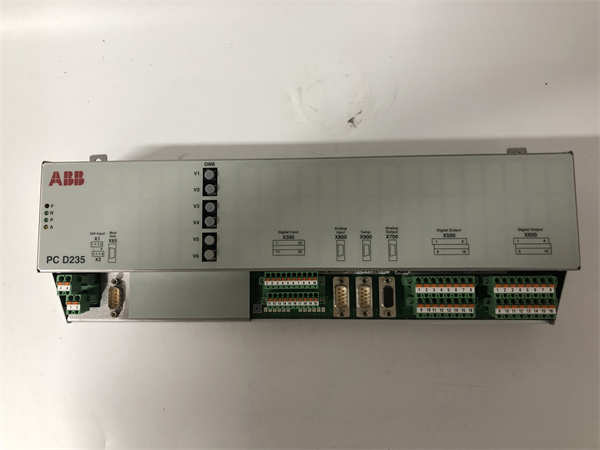

PCD235A101 ABB

Product parameters

model:PCD235A101

Type:Excitation Control Module

Application:Excitation control of synchronous motors

Control methods:voltage control,power factor control,etc

Communication interface:Ethernet,serial port

series

PCD235A101 is typically used in conjunction with ABB UNITOL series excitation systems.The ABB UNITOL series excitation system offers a variety of models and specifications to meet different application needs.

features

Precise control:capable of accurately controlling the excitation current of synchronous motors,achieving precise adjustment of parameters such as motor voltage and power factor.

Multiple control modes:Supports multiple control modes,which can be selected according to actual needs.

High reliability:Using high-quality electrical and mechanical components to ensure long-term stable operation.

Easy to integrate:It can be easily integrated into ABB UNITOL excitation systems.

Communication function:Supports multiple communication interfaces for easy communication with other devices.

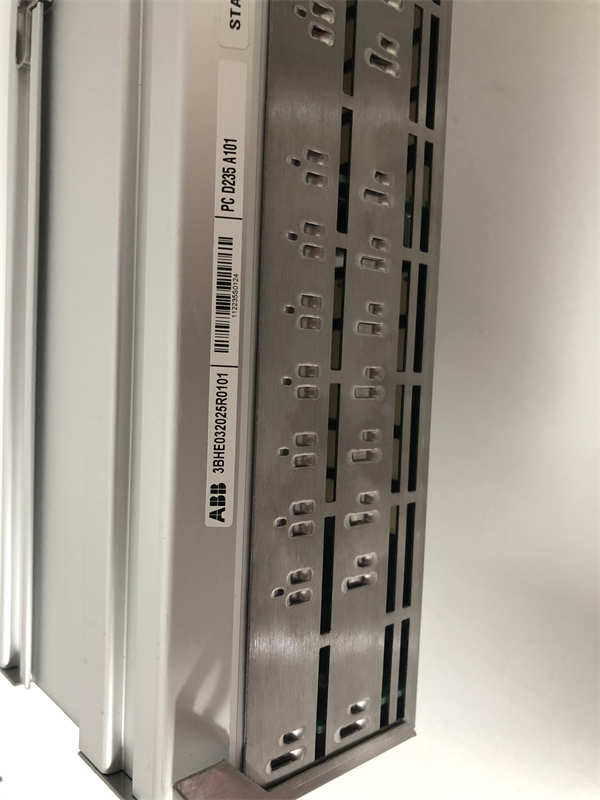

PCD235A101 ABB

effect

The main functions of ABB PCD235A101 excitation control module are:

Adjusting excitation current:According to the control instructions,adjust the excitation current of the synchronous motor to control parameters such as voltage and power factor of the motor.

Protecting the motor:monitoring the operating status of the motor,providing various protection functions such as overexcitation protection,underexcitation protection,etc.,to ensure the safe operation of the motor.

Communication:Communicate with other devices such as upper computer,PLC,etc.to achieve remote monitoring and control.

purpose

The ABB PCD235A101 excitation control module is widely used in various applications that require synchronous motor excitation control,such as:

Power plant:used to control the excitation system of the generator,regulate the voltage and power factor of the generator.

Metallurgy:used to control large synchronous motors,such as rolling mill motors,fan motors,etc.

Ship:Used to control the excitation system of ship propulsion motors,regulate motor speed and power.

application area

The ABB PCD235A101 excitation control module is suitable for various occasions that require synchronous motor excitation control,such as:

Power system

Metallurgical industry

Shipbuilding industry

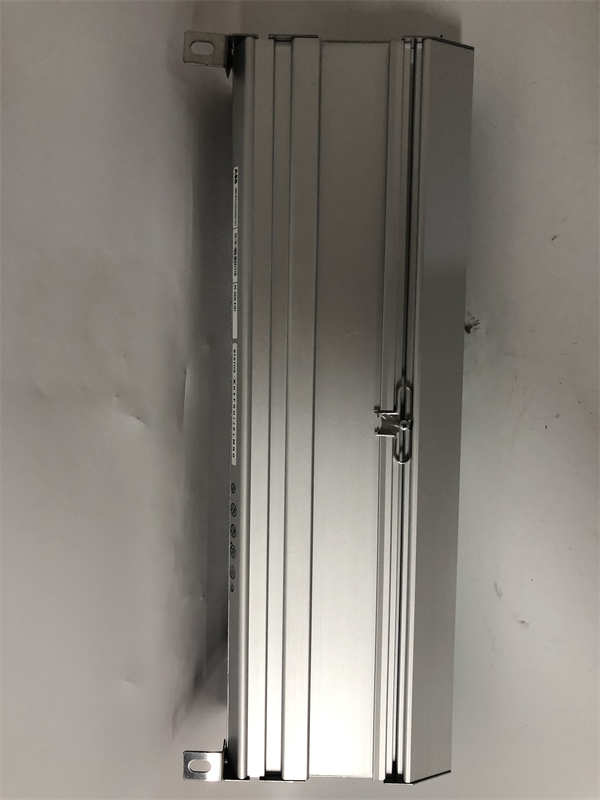

PCD235A101 ABB

summary

The ABB PCD235A101 excitation control module is a high-performance and highly reliable product that can be widely used in various fields that require synchronous motor excitation control.Its precise control,multiple control modes,and communication functions make it an ideal choice for industries such as power,metallurgy,and shipbuilding.
