MVI56-PDPMV1 PROSOFT PROFIBUS DPV1 Master Communication Module

Description

ProSoft MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module Detailed Explanation

Product Description

ProSoft MVI56-PDPMV1 is a high-performance PROFIBUS DPV1 master communication module designed specifically for Rockwell Automation ControlLogix programmable logic controllers(PLCs).This module allows ControlLogix PLC to communicate with various slave devices(such as PLC,frequency converter,sensor,actuator,etc.)through PROFIBUS DP network,achieving data exchange and control.

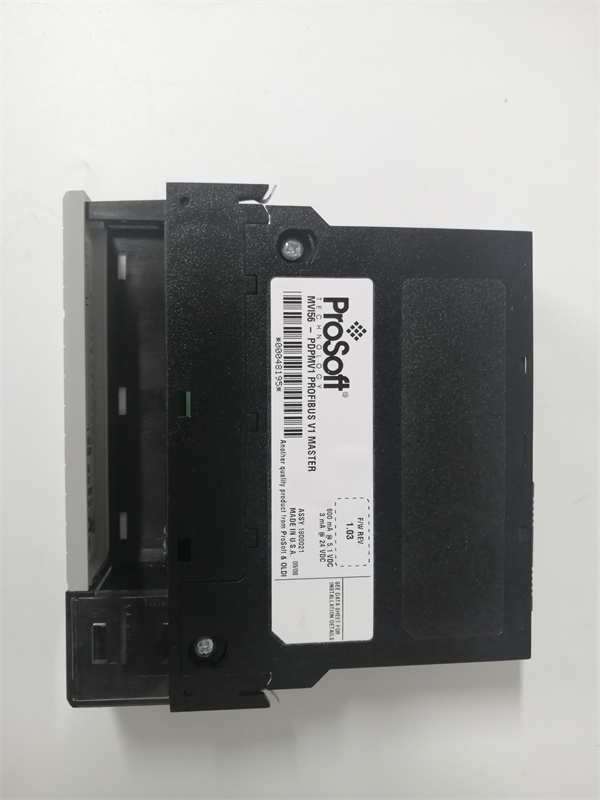

MVI56-PDPMV1 PROSOFT

Product parameters

model:MVI56-PDPMV1

Series:MVI56

Type:PROFIBUS DPV1 main station communication module

Compatible with PLC:Rockwell Automation ControlLogix

Communication protocol:PROFIBUS DP V1

Data transmission rate:up to 12 Mbps

Interface type:DB9

Installation method:ControlLogix rack mounted installation

series

The MVI56 series is a communication module series developed by ProSoft Technology for Rockwell Automation PLC,providing various industrial communication protocol interfaces,including PROFIBUS,EtherNet/IP,Modbus,etc.

features

High performance:Equipped with high-performance processors,it can achieve high-speed data transmission and real-time control.

High reliability:Adopting industrial grade design,it has good anti-interference ability and stability.

Easy to configure:Use ProSoft Configuration Builder software for easy and convenient configuration.

DPV1 function:Supports PROFIBUS DPV1 protocol,enabling non cyclic data exchange and extended diagnostic functions.

Multiple operating modes:Supports multiple operating modes to meet different application needs.

Integration with ControlLogix:seamlessly integrated into the ControlLogix PLC system,controlled through ladder logic.

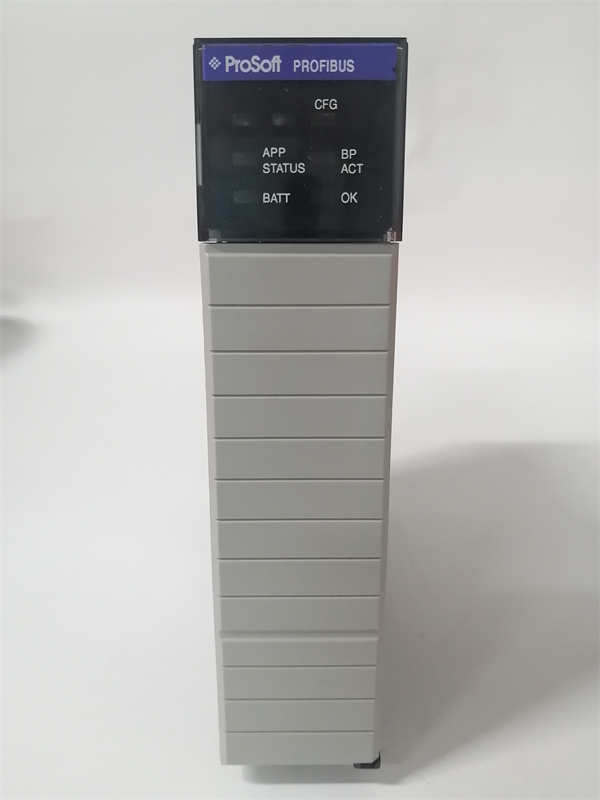

MVI56-PDPMV1 PROSOFT

effect

The main function of MVI56-PDPMV1 module is to:

Connect to PROFIBUS DP network:Enable ControlLogix PLC to connect to the PROFIBUS DP network.

Implement data exchange:Exchange data between ControlLogix PLC and PROFIBUS DP slave devices.

Control of slave devices:Control the operation of slave devices through PROFIBUS DP network.

purpose

This module is widely used in various industrial automation fields,such as:

Manufacturing industry:used to connect devices such as PLCs,I/O modules,sensors,actuators,etc.

Process control:used to connect DCS systems,field instruments,and other equipment.

Energy:Used to connect SCADA systems,RTUs,and other devices.

application area

The MVI56-PDPMV1 module is suitable for various industrial fields that require PROFIBUS DP communication,including:

automobile

Electronics

Food and Beverage

petrochemical industry

pharmacy

metallurgy

energy

MVI56-PDPMV1 PROSOFT

summary

ProSoft MVI56-PDPMV1 is a high-performance and reliable PROFIBUS DPV1 master communication module that provides Rockwell Automation ControlLogix PLC with the ability to connect to the PROFIBUS DP network.It is widely used in various industrial automation fields and is an important component of achieving interconnectivity of industrial equipment.
