IS200SRTDH2ACB GE DIN Rail RTD Terminal Board

Description

GE IS200SRTDH2ACB DIN Rail RTD Terminal Board Detailed Explanation

Product Overview

GE IS200SRTDH2ACB is a DIN rail mounted RTD(Thermistor)terminal board designed specifically for industrial automation.It provides a reliable and efficient way to connect and process multiple RTD sensors,widely used in temperature measurement and control systems.

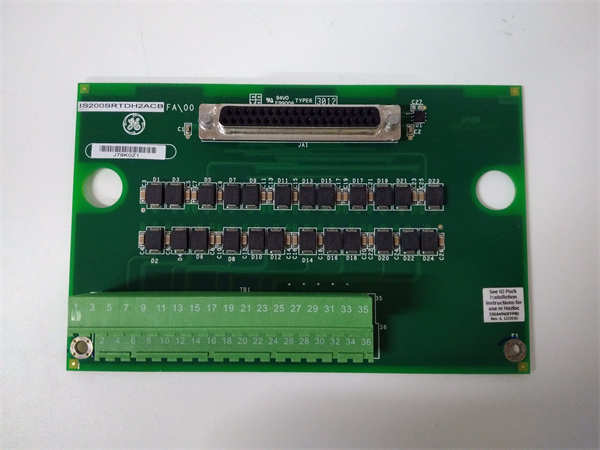

IS200SRTDH2ACB GE

Product Features

Compact design:adopting modular design,occupying small space,suitable for control cabinets with limited space.

High reliability:Using high-quality materials and processes,it has good electrical performance and mechanical strength.

Multi channel:Provides multiple RTD input channels and can connect multiple RTD sensors simultaneously.

Easy to install:DIN rail installation method,easy to install.

Strong compatibility:compatible with multiple RTD types and wiring methods.

Product parameters and specifications

model:IS200SRTDH2ACB

Manufacturer:GE board and turbine control

Series:Mark VI IS200

Type:DIN rail RTD terminal board

Number of channels:8 channels

RTD type:supports multiple RTD types

Wiring method:configurable

Working temperature:-20°C~+70°C

series

IS200SRTDH2ACB belongs to GE’s IS200 series,which is mainly used for signal acquisition and processing in the field of industrial automation.

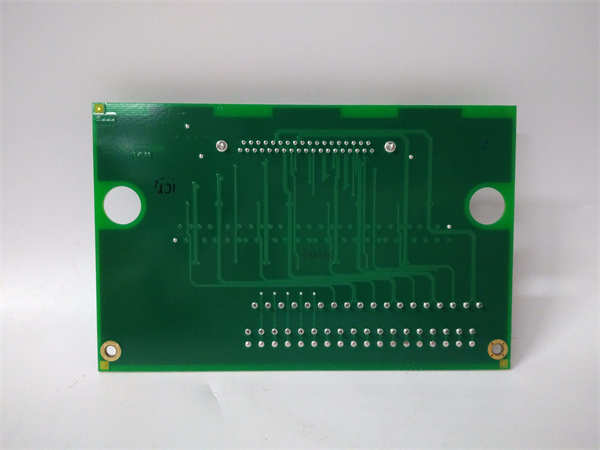

IS200SRTDH2ACB GE

features

High precision:With high measurement accuracy,it can meet demanding measurement requirements.

Anti interference:It has good anti electromagnetic interference ability to ensure the accuracy of measurement data.

Flexible configuration:It can be configured according to different application requirements.

effect

Signal acquisition:Collect temperature signals output by RTD sensors.

Signal conversion:Convert RTD resistance signals into standard voltage or current signals.

Signal isolation:Implement signal isolation to prevent interference.

purpose

Temperature measurement:used to measure temperature in various industrial processes.

Process control:used in process control systems to achieve temperature feedback control.

Data collection:used for data collection systems to collect temperature data.

application area

Chemical industry:Temperature measurement of reaction kettle

Metallurgy:Measurement of Blast Furnace Temperature

Electricity:Generator temperature measurement

Food:Temperature measurement in refrigerated storage

IS200SRTDH2ACB GE

summary

GE IS200SRTDH2ACB is a powerful and highly reliable RTD terminal board suitable for various industrial automation applications.Its compact design,multi-channel,and high precision make it an ideal choice for temperature measurement and control systems.
