FS7-2173-2RP FSC Multispectral Infrared Flame Detector

Description

FSC FS7-2173-2RP flame detector

Product Description

FSC FS7-2173-2RP is a multispectral infrared flame detector designed to quickly and accurately detect flames.It adopts advanced sensor technology and can work reliably in various environments.This detector is typically used in industrial applications that require fast response and high reliability flame detection.

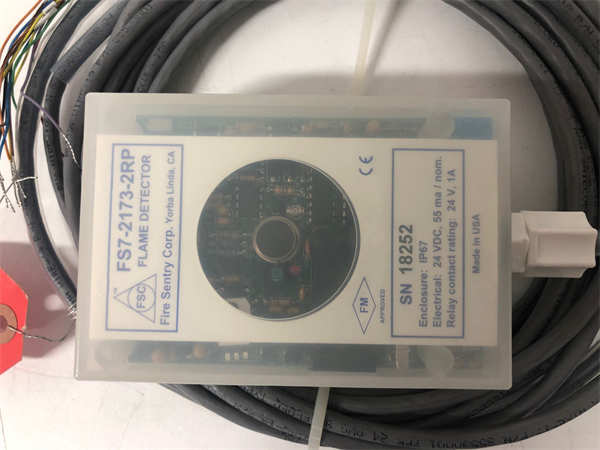

FS7-2173-2RP FSC

Product parameters and specifications

Product Name:Multispectral Infrared Flame Detector

model:FS7-2173-2RP

Series:FS7

Manufacturer:FSC(Fire Sentry Corporation,now acquired by Honeywell)

Detection range:120°horizontal and vertical

Response time:

Alarm:8-inch diameter polypropylene pool fire(13kW)within 5 seconds

Warning:4-inch diameter polypropylene pool fire(3kW)within 5 seconds

Spectral sensitivity:

Visible light:400-900 nanometers

Near infrared:0.7-1.1 micrometers

Broadband infrared:0.7-3.5 microns

Working voltage:24 VDC nominal value(18-28 VDC)-stabilized voltage

power waste:

Working state:55 mA 24 VDC nominal value

Alarm status:80 mA 24 VDC nominal value

Output relay:

Warning:SPST，Normally open,in a power-off state

Fire alarm:SPDT(normally open/normally closed),power-off/power on status,locked/unlocked

Fault:SPST(normally open),normally powered on state,latch/non latch

Contact rating:1 ampere 24 VDC

signal communication:RS-485，FireBus II

Indication:Red LED

Temperature range:Operating temperature:0°C to+70°C

Humidity range:10%to 90%relative humidity,no condensation

Shell material:dustproof,waterproof,heat sealed,injection molded polypropylene

Protection level:IP67

Certification:FM 3260,FM 3600,FM 3611,CSFM certification(California Fire Department)

Weight:3 pounds

Installation:Chassis installation slide bracket

Product Features

Multispectral sensing:Using broadband infrared,near-infrared,and visible light sensors,it can more accurately detect flames and reduce false alarms.

Quick response:able to detect flames within seconds and issue an alarm in a timely manner.

High reliability:Adopting industrial grade design,it has good anti-interference ability and stability.

Multiple output modes:Provides multiple relay outputs and communication interfaces for easy connection with various control systems.

High protection level:With IP67 protection level,it can be used in harsh environments.

Complete certification:Passed multiple international certifications and meets safety standards.

Product function

The main function of FS7-2173-2RP flame detector is:

Fast and accurate detection of flames:By utilizing multispectral infrared technology,flames can be detected quickly and accurately,and alarms can be issued in a timely manner.

Reduce false positives:By adopting advanced signal processing algorithms,false positives can be effectively reduced and the reliability of the system can be improved.

Protecting equipment and personnel safety:Timely detection of fire hazards can effectively protect equipment and personnel safety.

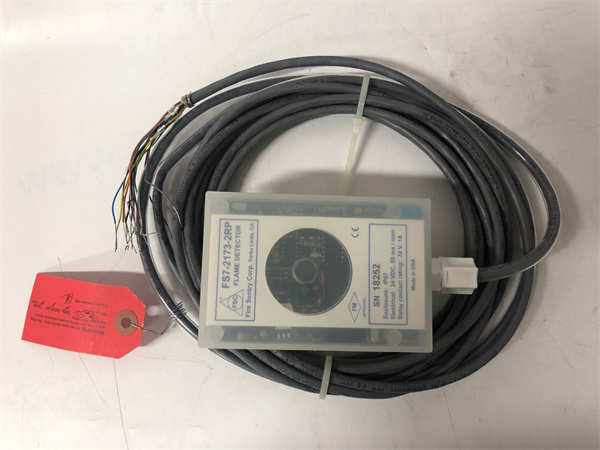

FS7-2173-2RP FSC

Product Usage

This flame detector is widely used in various industrial fields that require flame detection,such as:

petrochemical industry

natural gas

power

metallurgy

manufacturing

Warehouse

Aerospace

application area

The FS7-2173-2RP flame detector is suitable for various places with fire hazards,such as:

Storage locations for flammable and explosive materials

Production workshop

oil depot

chemical plant

Power plant

airport

a ship
