FBM216b FOXBORO redundant HART ® Communication input module

Description

FBM216b FOXBORO redundant HART®Detailed explanation of communication input module

Product Description

FBM216b is a redundant HART produced by FOXBORO company®Communication input module.It is mainly used in industrial automation systems to collect and process analog and digital signals from HART compatible field devices.This module has 8 channels,each of which supports 4-20mA analog signal input and can stack HART digital signals.Redundancy design improves the reliability of the system,ensuring that it can still operate normally in the event of module failure.

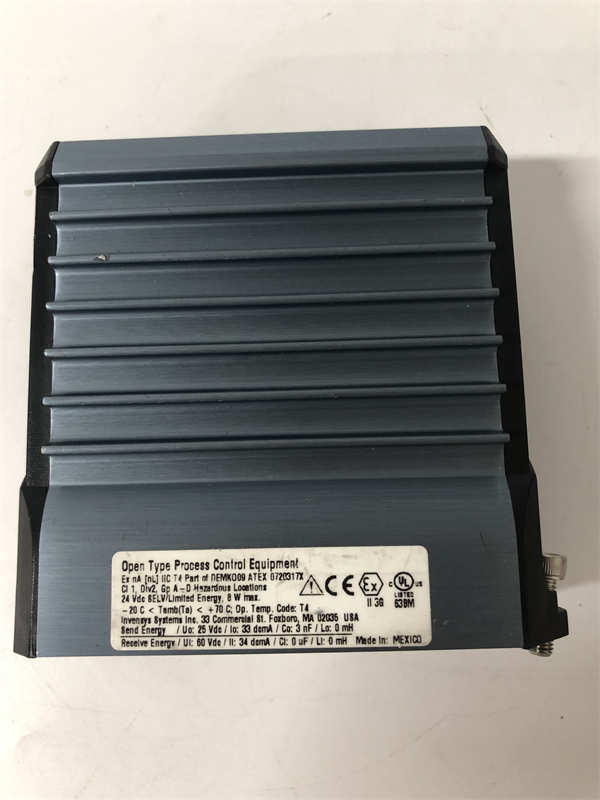

FBM216b FOXBORO

Product parameters

model:FBM216b

Series:FOXBORO 200 Series

Type:Redundant HART®Communication input module

Number of channels:8

Input signal type:4-20mA analog signal,HART digital signal

Redundancy design:supports module level redundancy

Communication protocol:HART

Product specifications

Installation method:DIN rail installation

series

FBM216b belongs to the FOXBORO 200 series module.This series of modules has a compact design,is sturdy and durable,and is suitable for various industrial environments.

features

Redundancy design:Module level redundancy improves system reliability and ensures that the system can still operate normally in the event of module failure.

HART communication:Supports the HART protocol and can communicate bidirectionally with intelligent field devices to achieve richer data acquisition and control functions.

Isolation channel:Each channel has electrical isolation to prevent signal interference and improve measurement accuracy.

High precision:Using high-precision analog-to-digital converters to ensure the accuracy of signal acquisition.

Easy to install:Adopting DIN rail installation method,convenient and fast.

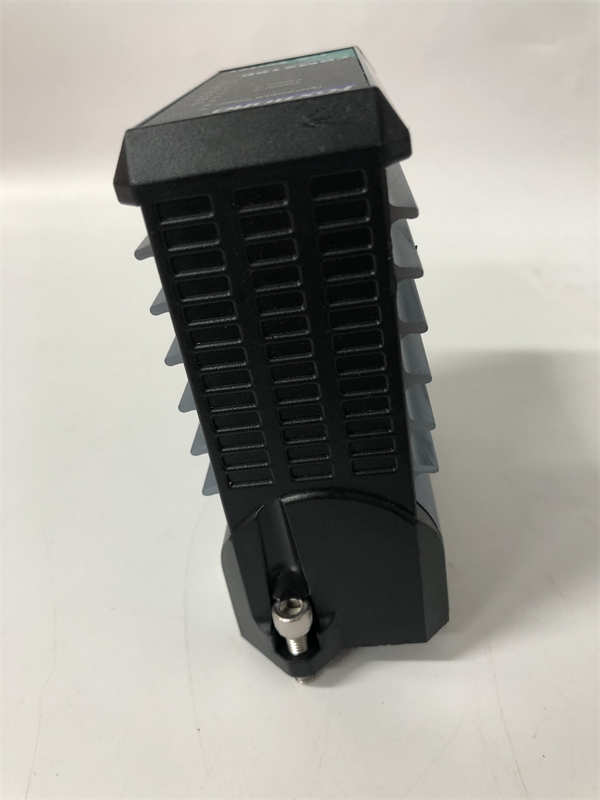

FBM216b FOXBORO

effect

The main function of FBM216b module is to:

Signal acquisition:Collect analog(4-20mA)and digital(HART)signals from HART compatible field devices.

Signal conversion:Convert the collected analog signals into digital signals for processing by the control system.

Communication:Bidirectional communication with intelligent field devices through HART protocol,reading device parameters,configuring devices,etc.

Redundant backup:Provide redundant modules that automatically take over when the main module fails,ensuring the normal operation of the system.

purpose

The FBM216b module is widely used in various industrial fields,such as:

Petrochemical industry:used for collecting and processing signals from sensors such as pressure,temperature,and flow rate.

Electricity:Used to collect and process signals from equipment such as generators and transformers.

Metallurgy:Used for collecting and processing signals from equipment such as blast furnaces and rolling mills.

Water treatment:used to collect and process signals from equipment such as water pumps and valves.

Pharmaceutical:Used for collecting and processing signals from equipment such as reactors and tanks.

application area

The FBM216b module is suitable for various industrial applications that require the acquisition and processing of HART compatible field device signals.Its redundant design and high reliability make it particularly suitable for situations that require high system stability.

FBM216b FOXBORO

summary

FBM216b FOXBORO redundant HART®The communication input module is a high-performance and highly reliable product that can be widely used in various industrial fields.Its redundant design,HART communication capability,and ease of installation make it an ideal choice in the field of industrial automation.
