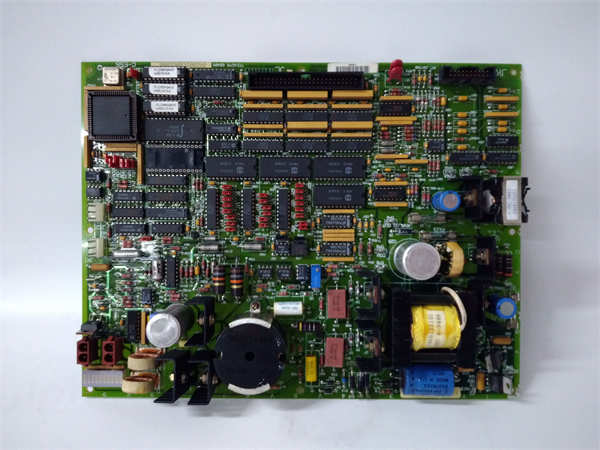

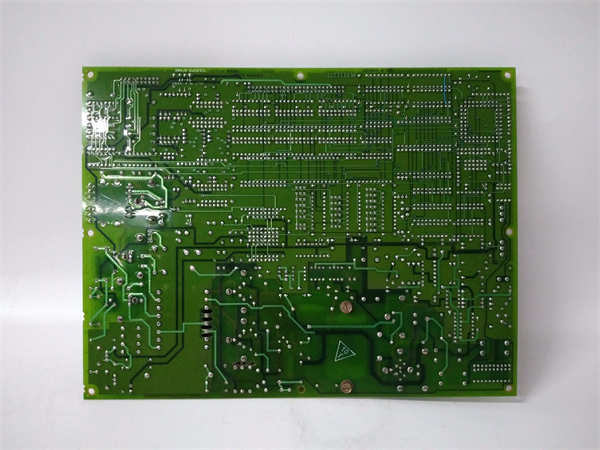

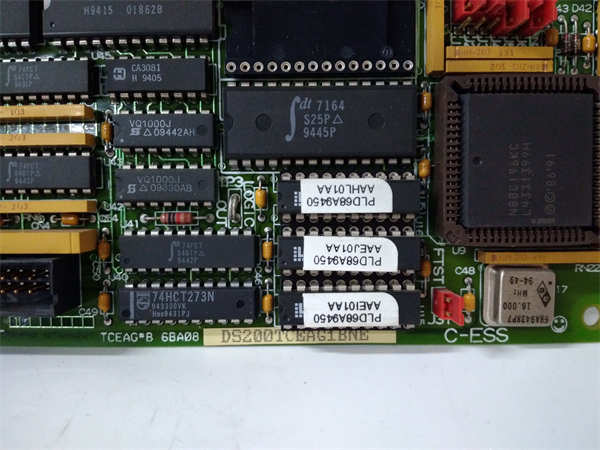

DS200TCEAG1BNE DS215TCEAG1BZZ01A GE Emergency overspeed board

Description

Description GE Emergency Overdrive board DS200TCEAG1BNE DS215TCEAG1BZZ01A

Product description

The GE DS200TCEAG1BNE DS215TCEAG1BZZ01A are emergency overspeed protection panels for industrial control systems.They are commonly used in large rotating equipment such as steam turbines and generators to prevent catastrophic damage due to excessive speed.

These overspeed protection panels protect equipment and personnel by monitoring equipment speed and quickly triggering protective actions,such as closing fuel valves and initiating emergency shutdowns,when the speed exceeds a preset threshold.

DS200TCEAG1BNE DS215TCEAG1BZZ01A GE

Product parameters and specifications

Model:DS200TCEAG1BNE DS215TCEAG1BZZ01A

Manufacturer:GE Board and turbine control

Series:Mark V DS200

Input signal:pulse signal or analog signal from the speed sensor.

Measuring range:The range of speed that can be measured.

Response time:The time from the detection of overspeed to the triggering of the protection action.

Trip setting:Speed threshold that triggers the protection action.

Alarm setpoint:The speed threshold for sending an alarm signal,usually lower than the trip setpoint.

Output signal:A relay or digital signal used to trigger a protective action.

Operating temperature range:The temperature range within which the sensor can work properly.

Power supply:The power supply voltage and current required by the sensor.

series

The DS200TCEAG1BNE DS215TCEAG1BZZ01A belongs to the GE family of overspeed protection systems.GE provides various types of overspeed protection systems to meet the requirements of different application scenarios.

DS200TCEAG1BNE DS215TCEAG1BZZ01A GE

trait

Independence:Overspeed protection systems are usually independent of the main control system to ensure their reliability.

Redundancy:Many overspeed protection systems use redundant designs,such as multiple sensors,multiple processing units,etc.,to improve system reliability.

Fast response:The overspeed protection system must have a fast response time in order to take timely protective measures when overspeed occurs.

Programmability:Some overspeed protection systems have programmability,which can set parameters such as trip setting value and alarm setting value according to actual needs.

Self-diagnosis function:Some overspeed protection systems have a self-diagnosis function,which can detect the system’s own fault and issue an alarm.

effect

DS200TCEAG1BNE DS215TCEAG1BZZ01A The main function of the emergency overspeed protection board is to monitor the speed of the equipment and quickly trigger the protection action when the speed exceeds the preset threshold to prevent equipment damage and casualties caused by overspeed.

use

DS200TCEAG1BNE DS215TCEAG1BZZ01A Emergency overspeed protection panels are used in a wide range of industrial applications to protect large rotating equipment,such as:

Steam turbine:Prevent steam turbine overspeed,avoid blade breakage and other accidents.

Generator:Prevent the generator from speeding and avoid accidents such as fast cars.

Compressor:Prevent the compressor from overspeed and avoid accidents such as explosion.

Pump:prevent pump overspeed,avoid impeller damage and other accidents.

Application field

DS200TCEAG1BNE DS215TCEAG1BZZ01A Emergency overspeed protection panels are widely used in various industrial fields,such as:

Electricity:Steam turbines and generator sets for power plants.

Petrochemical:compressors and pumps for refineries,chemical plants,etc.

Metallurgy:Rolling mills and fans for steel mills,non-ferrous metal mills,etc.

Other industries:Used in other industrial areas that require overspeed protection.

DS200TCEAG1BNE DS215TCEAG1BZZ01A GE

Sum up

The GE DS200TCEAG1BNE DS215TCEAG1BZZ01A Emergency Overspeed protection panel is an important safety device used to protect large rotating equipment from overspeed damage.They have the characteristics of fast response and high reliability,and are widely used in various industrial fields.
