GE DS200TCEAG1ACB I/O TC2000 Analog Board Detailed Explanation
Product Overview
The GE DS200TCEAG1ACB is an I/O TC2000 analog board designed specifically for the GE Mark V Speedtronic system.It is mainly used to collect and process analog signals from industrial sites,such as temperature,pressure,flow rate,etc.,and convert them into standard digital signals to achieve communication and data exchange with control systems.

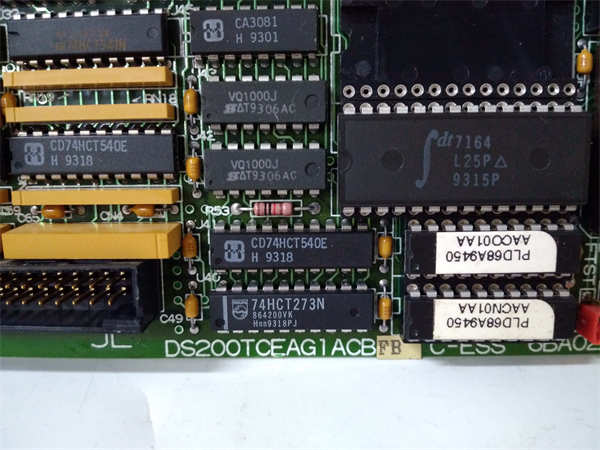

DS200TCEAG1ACB GE
Product Features
High precision:It has high measurement accuracy and conversion accuracy,and can accurately collect and output analog signals.
Multi channel:Supports multi-channel input and output,capable of processing multiple analog signals simultaneously.
Isolation design:Adopting optoelectronic isolation technology to effectively suppress interference and improve system reliability.
Flexible configuration:It can be flexibly configured through software to adapt to different application requirements.
Standardized design:Complies with the standards of the GE Mark V system,making it easy to install and maintain.
Product parameters
Manufacturer:GE board and turbine control
Series:Mark V DS200
Input signal:4-20mA current signal,voltage signal,etc
Output signal:digital signal
Number of channels:Depending on the model,the number of channels also varies
Accuracy:0.1%FS or higher
Isolation voltage:1500Vrms or higher
Working temperature:-20℃to+60℃
Protection level:IP20
Product specifications
Material:High quality insulation material and metal,ensuring electrical performance and mechanical strength.
Product series
DS200TCEAG1ACB belongs to the GE Mark V Speedtronic system series and is an important component of the system.
Product function
Analog signal acquisition:Convert analog signals from industrial sites into digital signals.
Data conversion:Convert analog signals into digital signals for computer processing.
Signal isolation:Isolate input and output circuits to prevent interference.
Product Usage
Process control:used to collect process variables such as temperature,pressure,flow rate,etc.,and feedback them to the controller to achieve closed-loop control of the process.
Data collection:used to collect on-site data and transmit it to the upper computer for data analysis and processing.
Signal conditioning:Amplify,filter,and process analog signals.

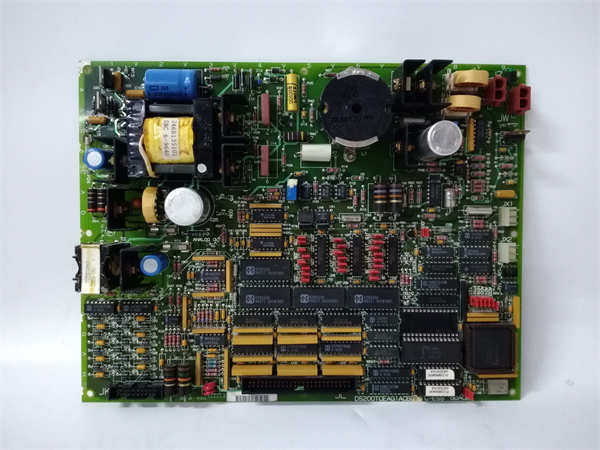

DS200TCEAG1ACB GE
application area
Power industry:power plants,substations,etc.
Petrochemical industry:Control systems for petrochemical plants.
Metallurgical industry:Control system for metallurgical equipment.
summary
The GE DS200TCEAG1ACB I/O TC2000 analog board is an important component of the GE Mark V Speedtronic system and has a wide range of applications in the field of industrial automation.Its high precision,multi-channel,and isolation design make it an indispensable component in process control systems.
