GE DS200TBQCG1AAA Analog Input Milliampere Input/Output(I/O)Terminal Module Detailed Explanation
Product Overview
The GE DS200TBQCG1AAA is an analog input milliampere input/output(I/O)terminal module designed specifically for the GE Mark V Speedtronic system.This module is mainly used to collect and process analog signals from industrial sites,such as pressure,temperature,flow rate,etc.,and convert them into standard 4-20mA current signals for output,in order to achieve communication and control with other devices.

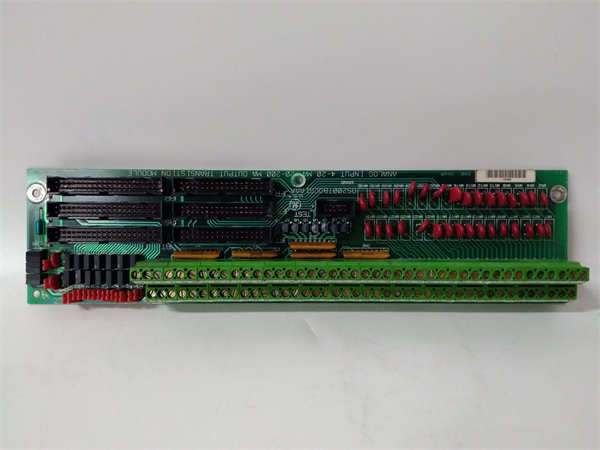

DS200TBQCG1AAA GE
Product Features
High precision:It has high measurement accuracy and conversion accuracy,and can accurately collect and output analog signals.
Multi channel:Supports multi-channel input and output,capable of processing multiple analog signals simultaneously.
Isolation design:Adopting optoelectronic isolation technology to effectively suppress interference and improve system reliability.
Flexible configuration:It can be flexibly configured through software to adapt to different application requirements.
Standardized design:Complies with the standards of the GE Mark V system,making it easy to install and maintain.
Product parameters
Manufacturer:GE board and turbine control
Series:Mark V DS200
Input signal:4-20mA current signal,voltage signal,etc
Output signal:4-20mA current signal
Accuracy:0.1%FS or higher
Isolation voltage:1500Vrms or higher
Working temperature:-20℃to+60℃
Protection level:IP20 or higher
Product specifications
Material:High quality insulation material and metal,ensuring electrical performance and mechanical strength.

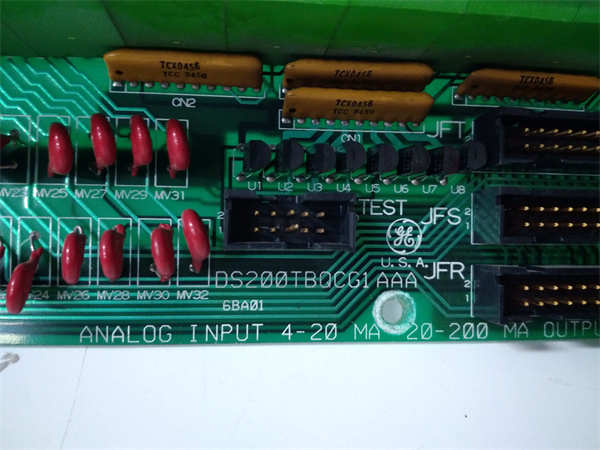

DS200TBQCG1AAA GE
Product series
DS200TBQCG1AAA belongs to the GE Mark V Speedtronic system series and is an important component of the system.
Product function
Analog signal acquisition:Convert analog signals from industrial sites into standard 4-20mA current signals.
Analog signal output:Convert digital signals into 4-20mA current signals to control actuators.
Signal isolation:Isolate input and output circuits to prevent interference.
Product Usage
Process control:used to collect process variables such as temperature,pressure,flow rate,etc.,and feedback them to the controller to achieve closed-loop control of the process.
Data collection:used to collect on-site data and transmit it to the upper computer for data analysis and processing.
Signal conditioning:Amplify,filter,and process analog signals.
application area
Power industry:power plants,substations,etc.
Petrochemical industry:Control systems for petrochemical plants.
Metallurgical industry:Control system for metallurgical equipment.

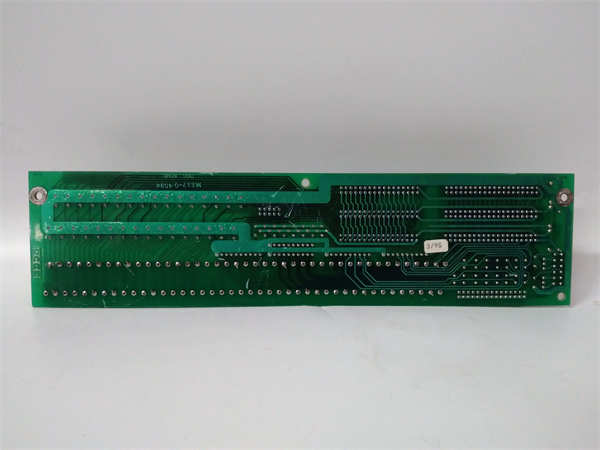

DS200TBQCG1AAA GE
summary
The GE DS200TBQCG1AAA analog input milliampere input/output(I/O)terminal module is an important component of the GE Mark V Speedtronic system and has a wide range of applications in the field of industrial automation.Its high precision,multi-channel,and isolation design make it an indispensable component in process control systems.
