DO810 3BSE008510R1 ABB Digital Output Module

Description

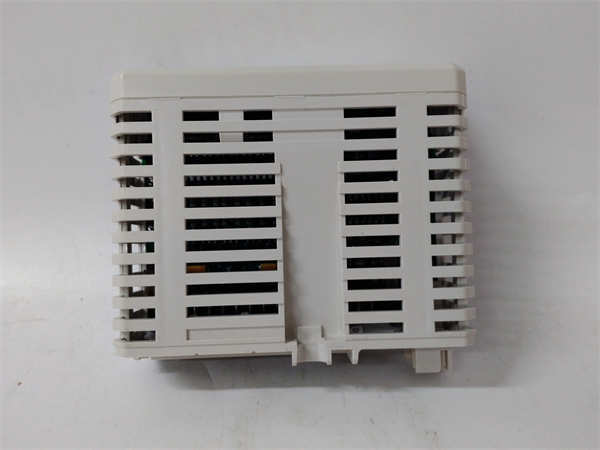

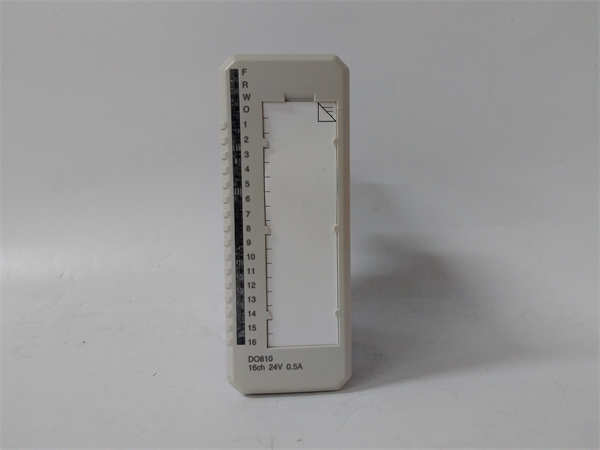

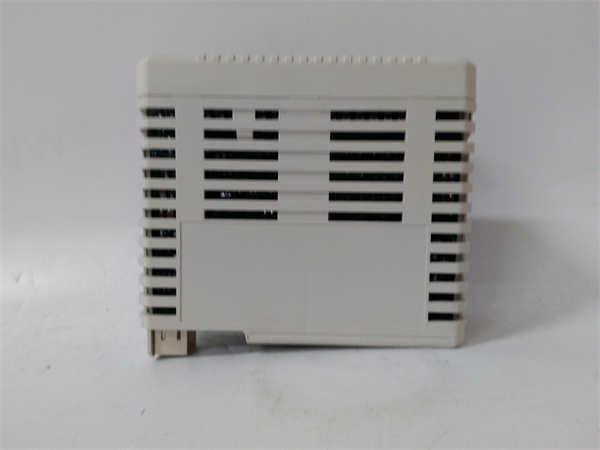

ABB DO810 3BSE008510R1 digital output module

Product description

The ABB DO810 3BSE008510R1 is a digital output module for industrial automation.It is commonly used in ABB’s 800xA control systems as an interface between the control system and field execution equipment such as valves,relays,motors,etc.The module converts the command issued by the control system into the recognizable signal of the field equipment,so as to realize the control of the field equipment.

DO810 3BSE008510R1 ABB

Product parameters and specifications

Model:DO810 3BSE008510R1

Series:800xA

Output type:digital output

Number of channels:16

Output voltage:24V DC

Output current:0.5A/channel

Isolation:Two groups of isolation,each group of 8 channels

Short-circuit protection:Supported

Rated isolation voltage:50V

Operating temperature:-20°C to 70°C

Product depth:102 mm

Product height:119mm

Product width:45 mm

Net weight:0.2 kg

Protection level:IP20,prevent dust and moisture intrusion

series

The module belongs to the ABB 800xA family of control systems.The 800xA is one of ABB’s flagship automation control systems with powerful capabilities and flexibility for a wide range of industrial applications.

DO810 3BSE008510R1 ABB

trait

16 digital output channels:Multiple field devices can be connected.

Each group of 8 channels isolation:improve the anti-interference ability and security of the system.

0.5A output current:can meet the needs of most field equipment.

Short-circuit protection:prevents the module from being damaged due to field equipment failure.

Rated isolation voltage 50V:Improves system security.

Easy to use:with a simple configuration and debugging process,easy to use.

effect

The main functions of the ABB DO810 3BSE008510R1 digital output module are:

Connect the control system to the field equipment:Connect the 800xA control system to the field execution equipment to realize the transmission of control signals.

Control field equipment:according to the instructions issued by the control system,control the action of field equipment,such as the opening and closing of valves,the suction of relays,the start/stop of motors,etc.

use

ABB DO810 3BSE008510R1 digital output modules are widely used in various industrial automation fields,such as:

Manufacturing:Used in production line automation,robot control,etc.

Petrochemical:Used for process control,data acquisition,etc.

Power system:Used for substation automation,distribution network monitoring,etc.

DO810 3BSE008510R1 ABB

Application field

Applications of the ABB DO810 3BSE008510R1 digital output module include:

Industrial automation

Process control

Electric power system

transportation

Building automation
