Description of ABB DI810 3BSE008508R1 digital input module
Product description
The ABB DI810 3BSE008508R1 is a digital input module for industrial automation systems and belongs to the ABB S800 I/O family.It is mainly used to collect the switching signal of the field equipment,such as the status of sensors,buttons,switches,etc.After these signals are processed by the module,they can be transmitted to the PLC or other control systems for logical calculation and control decisions.
DI810 3BSE008508R1 ABB
Product parameters and specifications
Model:DI810
Order number:3BSE008508R1
Series:S800 I/O
Input channels:16
Input voltage range:24V DC
Input type:Current sinking
Isolation:Group isolation,two groups,each group of 8 channels
Filter time:optional,2ms,4ms,8ms,16ms
Maximum cable length:600 meters
Operating temperature range:-40°C to+70°C
Mounting method:DIN rail mounting
series
The DI810 digital input module belongs to the ABB S800 I/O series.This series of products is ABB’s classic products,with mature technology and reliable performance,widely used in various industrial fields.S800 I/O series modules typically have the following characteristics:
Modular design:The modular design is convenient for users to configure and expand according to their needs.
Flexibility:Multiple types of input/output signals are supported to meet different application requirements.
Reliability:With industrial design and components,it has good stability and reliability,and can operate in harsh environments for a long time.
Easy to use:With a simple interface and operation mode,easy to use and integrate.

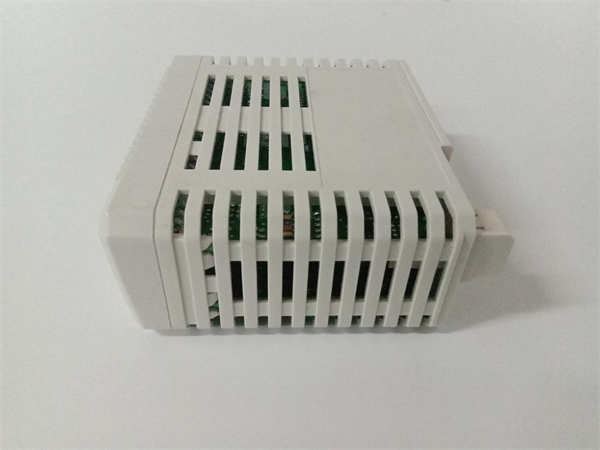

DI810 3BSE008508R1 ABB
trait
The DI810 digital input module may have the following characteristics:
High density:With 16 input channels,it saves installation space.
Configurability:Input types can be configured to suit different sensor types.
Isolation:Electrical isolation between the input channels can improve the anti-interference ability of the system.
Status indicator:Each input channel has a status indicator to facilitate users to understand the status of the input signal.
effect
The main role of the DI810 digital input module is to collect digital signals from industrial sites and convert these signals into electrical signals that can be used by PLCS or other control systems.
use
DI810 digital input module is widely used in various industrial sites that need to collect digital signals,such as:
Automated production line:used to collect status signals of sensors,switches,buttons,etc.
Process control system:used to collect the on-off signal of the field equipment,such as the start and stop state of valves,pumps,motors,etc.
Building automation system:used to collect the switching signal of building equipment,such as the operating status of lighting,air conditioning,fire fighting equipment,etc.
DI810 3BSE008508R1 ABB
Application field
Applications of the DI810 digital input module include:
Manufacturing:For all types of automated production lines.
Process industry:Used in various types of process control systems.
Building automation:Used in various types of building automation systems.
