DI3201 DI3201-A-V001 SIS security module

Description

ABB DI3201 DI3201-A-V001 SIS module

Product description

ABB DI3201 DI3201-A-V001 is A safety module for industrial automation and is part of ABB’s Safety Instrumentation Systems(SIS)product line.It is mainly used in safety-related applications such as emergency stopping systems,fire alarm systems,etc.The module is typically used to collect and process digital signals from safety-related sensors and perform corresponding safety actions according to preset logic to protect people and equipment.

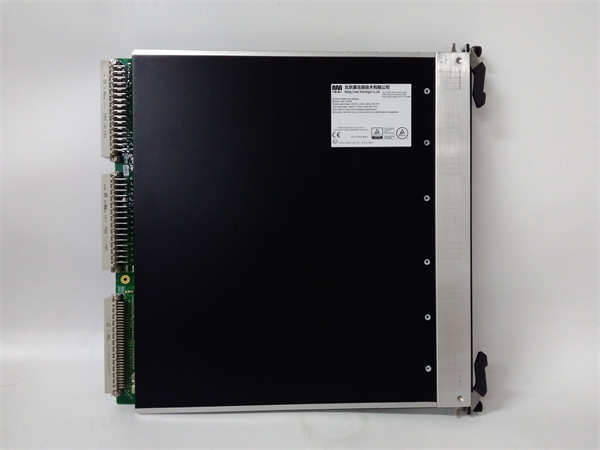

DI3201 DI3201-A-V001 SIS

Product parameters and specifications

Model:DI3201 DI3201-A-V001

Series:ABB Safety Instrument System(SIS)

Input type:numeric input

Input channels:32 channels(presumed)

Power supply:24V DC

Operating temperature:Industrial grade temperature range(such as-20℃~70℃)

Protection level:IP level,such as IP20

series

The module is part of ABB’s Safety Instrumentation Systems(SIS)product line.ABB’s SIS product line includes a variety of security controllers,I/O modules,sensors and more to build complete security protection systems.

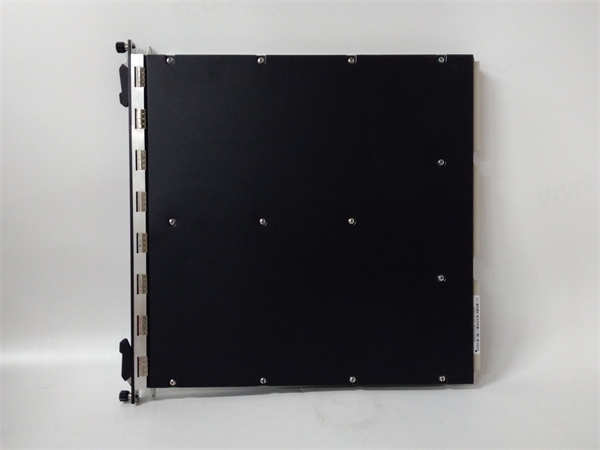

DI3201 DI3201-A-V001 SIS

trait

High reliability:An important feature of the safety instrumentation system,with high stability and anti-interference capability,ensuring that safety functions can be reliably performed in the event of an emergency.

Fast response:With fast response time,security incidents can be detected and processed in time.

Safety certification:May have passed relevant safety certification,such as SIL certification,in accordance with international safety standards.

Redundant design:In order to improve the reliability of the system,redundant designs may be used,such as triple modular redundancy(TMR).

Easy to use:equipped with corresponding configuration and programming software,convenient for users to configure and use.

effect

The main functions of this module are:

Signal acquisition:acquisition of digital signals from safety-related sensors,such as switch signals,contact signals,etc.

Logic processing:According to the preset security logic,the collected signal is processed and judged.

Safety output:According to the processing result,output the corresponding safety control signal,such as closing the valve,stopping the equipment,etc.

use

The module is widely used in a variety of industrial applications requiring safety protection,such as:

Petrochemical:process safety control,emergency shutdown system,fire alarm system,etc.

Electricity:Safety monitoring system for power plants and substations.

Rail transit:train control system,signal system,etc.

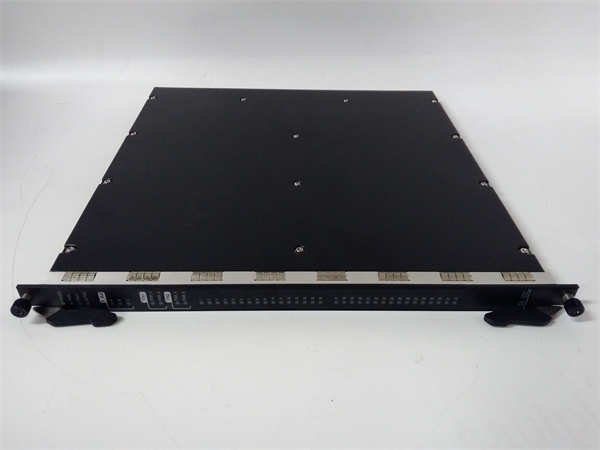

DI3201 DI3201-A-V001 SIS

Application field

The module is mainly used in industrial areas with high safety and reliability requirements,such as:

Petrochemical industry

electricity

rail traffic

metallurgy

pharmacy
