Description ABB AI810 3BSE008516R1 Analog input module
Product description
The ABB AI810 3BSE008516R1 is an analog input module for industrial automation systems and belongs to the ABB S800 I/O family.It is mainly used to collect analog signals of field equipment,such as voltage,current,temperature,pressure,etc.After these signals are processed by the module,they can be transmitted to the PLC or other control systems for control decisions.

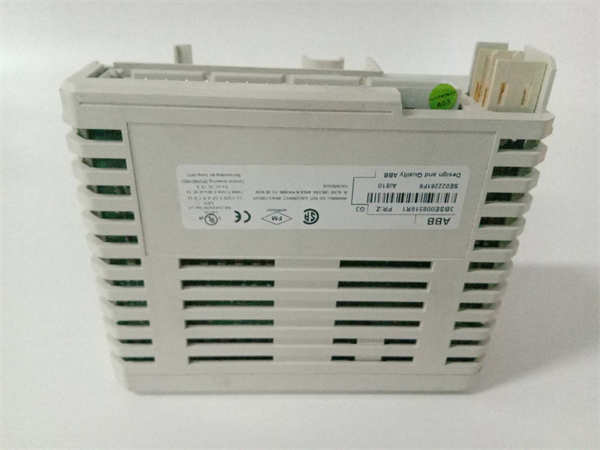

AI810 3BSE008516R1 ABB
Product parameters and specifications
Model:AI810
Order number:3BSE008516R1
Series:S800 I/O
Input channels:8
Input signal type:Voltage,current(configurable)
Input range:0-10V,0(4)-20mA
Resolution:12 bits
Isolation voltage:500V AC
Operating temperature range:-40°C to+70°C
Mounting method:DIN rail mounting
series
The AI810 analog input module belongs to the ABB S800 I/O series.This series of products is ABB’s classic products,with mature technology and reliable performance,widely used in various industrial fields.S800 I/O series modules typically have the following characteristics:
Modular design:The modular design is convenient for users to configure and expand according to their needs.
Flexibility:Multiple types of input/output signals are supported to meet different application requirements.
Reliability:With industrial design and components,it has good stability and reliability,and can operate in harsh environments for a long time.
Easy to use:With a simple interface and operation mode,easy to use and integrate.

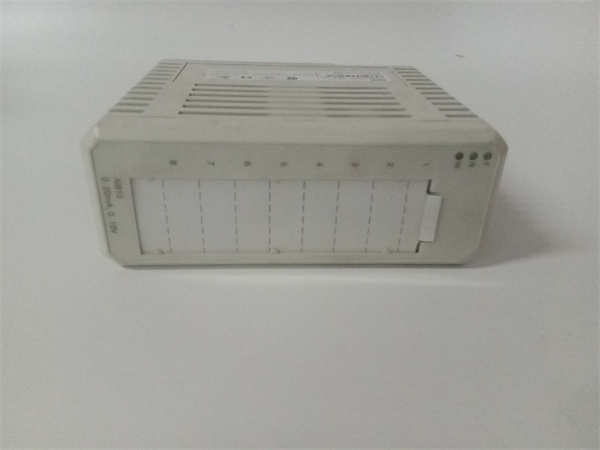

AI810 3BSE008516R1 ABB
trait
The AI810 analog input module may have the following characteristics:
Multi-channel:With 8 input channels,multiple analog signals can be collected at the same time.
Configurability:The input signal type and range can be configured to suit different sensor types.
High precision:with high conversion accuracy,the accuracy of the signal can be guaranteed.
Isolation:Electrical isolation between the input channels can improve the anti-interference ability of the system.
Status indicator:Each input channel has a status indicator to facilitate users to understand the status of the input signal.
effect
The main role of the AI810 analog input module is to collect analog signals from industrial sites and convert these signals into digital signals that can be used by PLC or other control systems.
use
The AI810 analog input module is widely used in various industrial sites where analog signals need to be collected,such as:
Automatic production line:used to collect temperature,pressure,flow and other signals.
Process control system:used to collect analog signals of field equipment,such as liquid level,temperature,pressure,etc.
Building automation system:used to collect analog signals of building equipment,such as temperature,humidity,light intensity,etc.

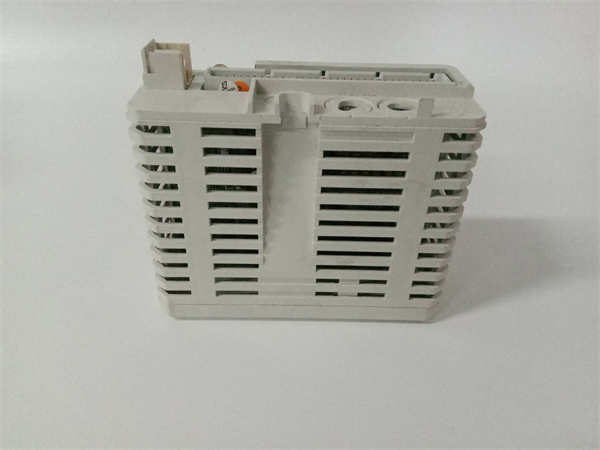

AI810 3BSE008516R1 ABB
Application field
Application areas of the AI810 analog input module include:
Manufacturing:For all types of automated production lines.
Process industry:Used in various types of process control systems.
Building automation:Used in various types of building automation systems.
