Westinghouse 5X00062G01 Analog Output Module Detailed Explanation
Product Overview
Westinghouse 5X00062G01 is a high-performance analog output module produced by Westinghouse(now Emerson Automation Solutions)and belongs to the Ovation series.This module is mainly used to convert digital signals of the control system into analog signals to drive external devices and achieve precise control of industrial processes.

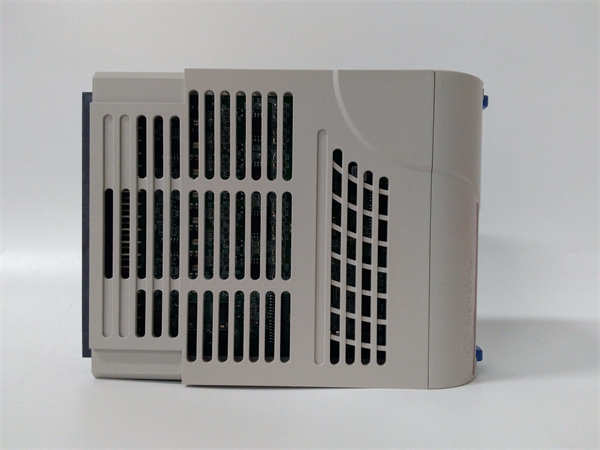

5X00062G01 WESTINGHOUSE
Product parameters and specifications
Model:5X00062G01
Series:Ovation
Type:HART Analog Output Module
Signal type:4-20mA
Number of channels:8 channels
Accuracy:High precision
Power supply:Powered by the system
Installation method:DIN rail installation
Environmental requirements:Industrial environment
Product Features
HART protocol support:Supports the HART protocol and enables bidirectional communication with HART field devices.
High channel density:8 channels,increasing the number of I/O points and reducing system costs.
Flexible configuration:It can be flexibly configured according to application requirements to meet the needs of different occasions.
High reliability:Industrial grade components are used and rigorously tested to ensure stable operation in harsh environments.
Diagnostic function:It has a self diagnostic function,which facilitates users in fault diagnosis and maintenance.

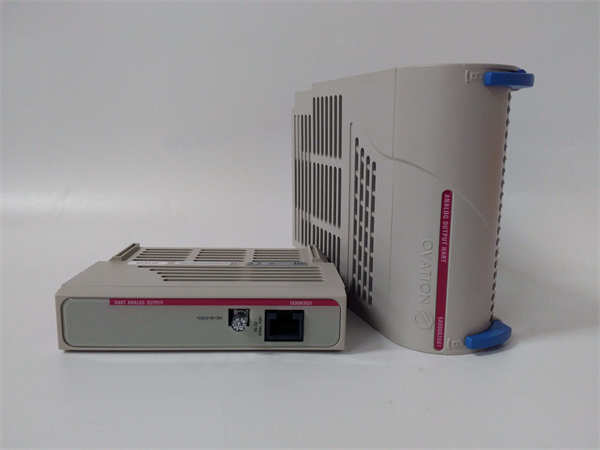

5X00062G01 WESTINGHOUSE
Product function and purpose
The 5X00062G01 module is mainly used to convert digital signals of the control system into 4-20mA analog signals,drive external devices,and achieve process control.Specific applications include:
Control valve:By outputting analog signals to control the opening of the valve and regulate the flow rate of the fluid.
Drive motor:Control the speed or torque of the motor to drive the equipment.
Adjust temperature,pressure,etc.:Output analog signals to temperature sensors,pressure sensors,and other devices to adjust process parameters.
application area
The 5X00062G01 module is widely used in various industrial process control fields,such as:
Power industry:control of power plants and substations
Petrochemical Industry:Control of Petrochemical Production Processes
Metallurgical industry:Control of metallurgical production process
Paper Industry:Control of Paper Production Process
Water Treatment:Control of the Water Treatment Process

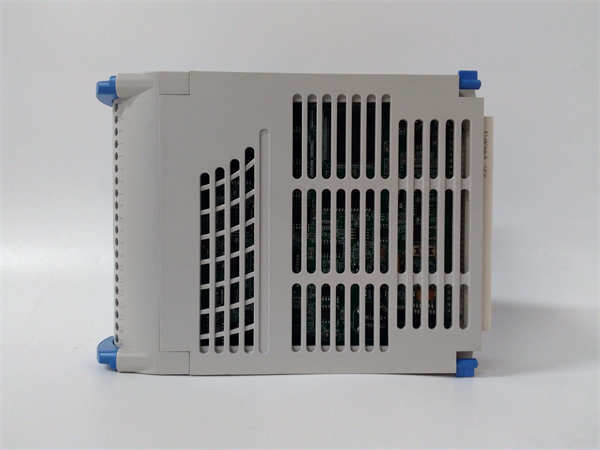

5X00062G01 WESTINGHOUSE
summary
The Westinghouse 5X00062G01 analog output module,as an important component of the Ovation series,plays a crucial role in the field of industrial automation.Its high precision,reliability,and modular design make it an ideal choice for process control systems.By supporting the HART protocol,this module can communicate with various HART field devices to achieve higher-level automation control.
