223BD-00001AAB MKS pressure sensor

Description

MKS 223BD-00001AAB Pressure Sensor Product Information

Product Description

MKS 223BD-00001AB is a Baratron®Series of absolute pressure sensors.It adopts capacitive sensing technology,which can measure absolute pressure with high accuracy,and the measurement results are independent of gas composition.This sensor has the characteristics of good long-term stability and strong resistance to overpressure,and is widely used in various industrial fields that require precise pressure measurement.

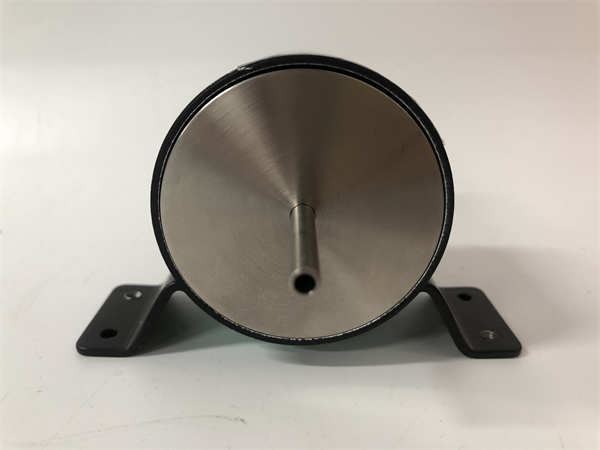

223BD-00001AAB MKS

Product parameters and specifications

Product Name:Baratron®Absolute pressure sensor

Model:223BD-00001AB

Series:223B

manufacturer:MKS Instruments,Inc.

Pressure range:0-10 Torr

Accuracy:±0.12%reading

Resolution:High Resolution

Output signal:0-10 VDC proportional analog output

Interface type:15 pin D-sub connector

Supply voltage:11-18 VDC

Maximum Overpressure:40 PSI

texture of material:Inconel®And Incoloy®Nickel alloy(sensor part)

series

223BD-00001AB belongs to MKS Baratron®223B series absolute pressure sensor.Baratron®The series is a capacitive pressure sensor from MKS company,which has the characteristics of high precision and high reliability,and is widely used in various industrial fields.

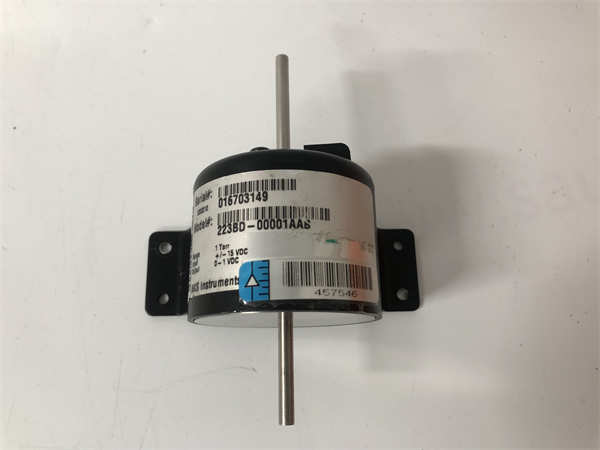

223BD-00001AAB MKS

Product Features

High precision:capable of accurately measuring absolute pressure.

Long term stability is good:the output signal is stable and not prone to drift.

Strong anti overvoltage capability:It has a high overvoltage limit and can withstand certain pressure shocks.

Unrelated to gas composition:measurement results are not affected by gas composition.

Corrosion resistance:Inconel is used®And Incoloy®Nickel alloy material has good corrosion resistance.

Easy to integrate:Analog output signals are convenient to connect with various control systems.

Product function

The main function of 223BD-00001AAB pressure sensor is to:

Measurement of absolute pressure:used to measure the absolute pressure of various gases or liquids.

Provide pressure feedback:Convert pressure signals into electrical signals for output,which are used by the control system for pressure control and monitoring.

Product Usage

This pressure sensor is widely used in various industrial fields,such as:

Semiconductor manufacturing:used for precise control of process gas pressure.

Vacuum system:used for measuring and controlling vacuum degree.

Scientific research:used for pressure measurement in various experiments and tests.

Industrial automation:used in various situations that require precise pressure control.

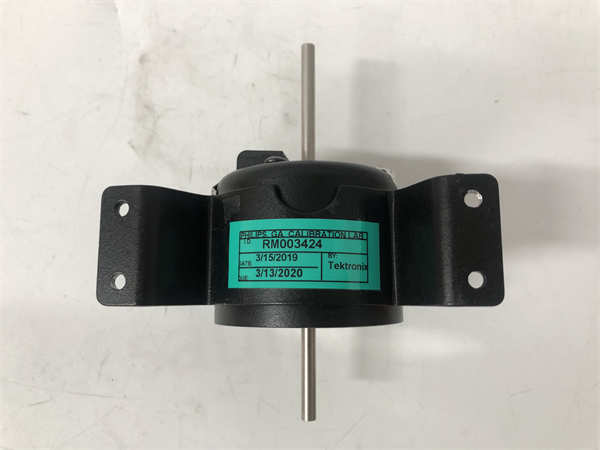

223BD-00001AAB MKS

application area

The 223BD-00001AAB pressure sensor is suitable for various applications that require precise pressure measurement,such as:

Gas pressure measurement

Liquid pressure measurement

Vacuum measurement
