1746SC-INO4I A-B SLC 500 ™ 4-channel isolated analog output (C) module

Description

A-B 1746SC-INO4I SLC 500™4-channel isolated analog output(C)module

Product Description

A-B 1746SC-INO4I is a product designed for Allen Bradley SLC 500™Analog output module of PLC(Programmable Logic Controller)system.It provides four isolated analog current output channels.The main function of this module is to convert the digital control signals of PLC into analog current signals for controlling external devices such as valves,actuators,etc.

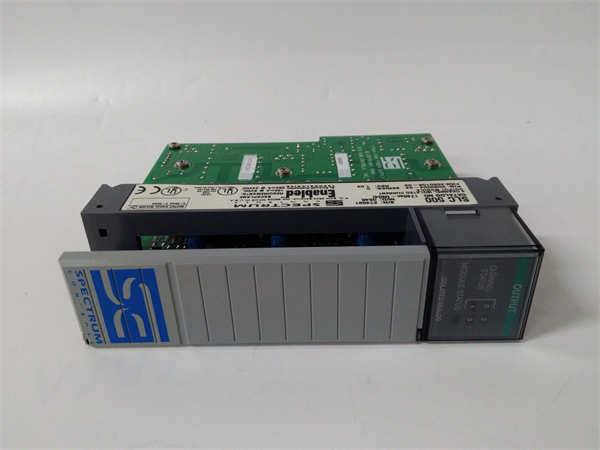

1746SC-INO4I A-B

Product parameters

Model:1746SC-INO4I

Number of analog output channels:4

Output signal type:current(C)

Isolation:Isolation between channels and between channels and backplate

Resolution:16 bits

Output range:0-20mA,4-20mA

Accuracy:+/-0.05%

Update rate:20ms

Working temperature:0-60°C

Installation method:rack mounted

Product specifications

Module size:139mm x 89mm x 45mm

Weight:220g

Power requirements:5V DC,24V DC

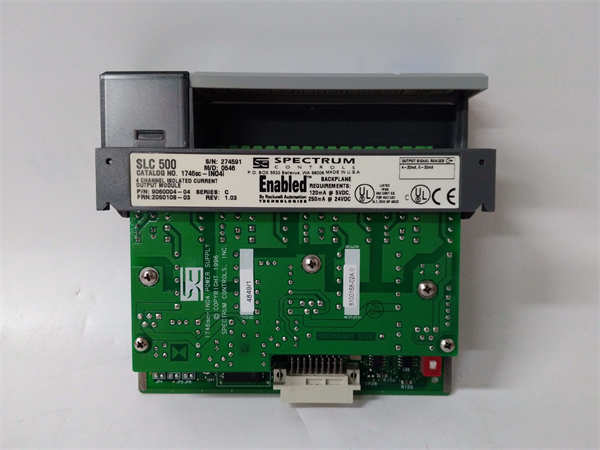

1746SC-INO4I A-B

series

1746SC-INO4I belongs to Allen Bradley SLC 500™Series modules.SLC 500™It is a series of PLC and I/O modules launched by Rockwell Automation,widely used in the field of industrial automation control.

features

Isolation:With channel isolation function,it can effectively prevent interference between channels and improve the reliability of the system.

High precision:16 bit resolution,providing high-precision analog output signals.

Multiple output ranges:Supports two output ranges of 0-20mA and 4-20mA,which can flexibly adapt to different application requirements.

Easy to use:can be configured and controlled through RSLogix 500 programming software.

effect

The main function of the 1746SC-INO4I module is to convert the digital control signals of the PLC into analog current signals,which are used to control external devices and achieve automation control functions.

purpose

The 1746SC-INO4I module is widely used in various industrial automation control systems,such as:

Process control:used to control various parameters in the production process,such as temperature,pressure,flow rate,etc.

Motion control:used to control the motion of servo motors or stepper motors.

Hydraulic control:used to control the opening of hydraulic valves and achieve control of hydraulic systems.

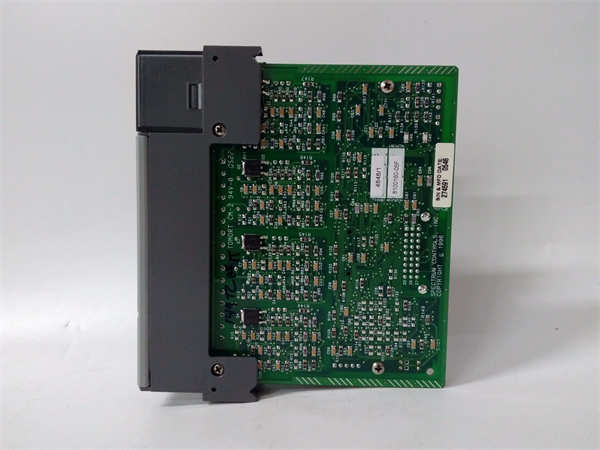

1746SC-INO4I A-B

application area

The 1746SC-INO4I module is mainly used in the following fields:

manufacturing

petrochemical industry

metallurgy

power

water treatment
